This active equalizer is a transformer push-pull rectification
feedback type, real-time, dynamic, synchronous, and energy transfer
type.
Specification:
Item Type:Smart Active Balancer
Applicable Battery Type: Ternary lithium, lithium iron
Adaptable Battery Strings Number: 2-24 strings
Minimum Balance Voltage: 30mV
Maximum Equalizing Current: 8A
Forced Equilibrium Timing: 60 minutes
Cable Interface: 3.81 interface
Low Voltage Automatic Shutdown: 2.7V (2.5V)/string
Balance Method: Parallel energy transfer method
Standby Load Power Consumption: Battery Balance Power Consumption
after Startup: 80mA (voltage difference = 10mV)
Automatic Start Trigger Voltage: +70mV
Automatic Start Off Voltage: +20mV
Applicable cells:
lithium iron phosphate (3.2V), ternary lithium (3.7V), lithium
titanate. When using lithium titanate batteries, please note when
purchasing.
Technical Parameters
| Product model | 8A Smart Active Balancer for 2-24s (EK-24S8EB) |
| Supported battery type | NCM / LFP/ LTO(Li-ion/Lifepo4/Lto) |
| Single cell voltage collection range | |
| Undervoltage protects sleep voltage | APP can be customized Settings :1.5-4.2V |
| Equilibrium method | Time-sharing single channel transfer, point-to-point energy
transfer |
| Reverse protection | Support disorderly power on detection/protection |
| Equilibrium current | APP can be customized Settings: 1A~8A |
| Whether an external power supply is required | Battery-operated(Accuracy:3mV) DC power supply(Accuracy:1mV) |
| External power supply | |
| Voltage equalization accuracy | APP can be customized Settings :1mV(TYP) |
| Power failure detection function | |
| Wrong wire protection function | |
| Fault alarm function | |
| Buzzer | APP can be customized Settings |
| Power dissipation | At equilibrium≈1W,Stop equilibrium≈0.5W |
| Operating temperature | |
Application
| Base station backup power supply,Solar power station |
Indicator Light Definition
Green – Power supply status indicator light
Always on: power supply is good
Blue – Bluetooth status indicator light
Always on: connected successfully
Flash: disconnect
Yellow – Work status indicator light
Always on: equalization is finished
Flash: equalizer at work
Red – Malfunction status indicator light
Always on: The number of battery cells does not match the setting
Flash: The resistance of equalizer line is excessive
Packing List
Use Manual
Wiring Diagram
The use of battery power or DC adapter power supply, its wiring
method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy
±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing
accuracy ±1mV. The following figure shows how to install and
connect the 24S battery pack:

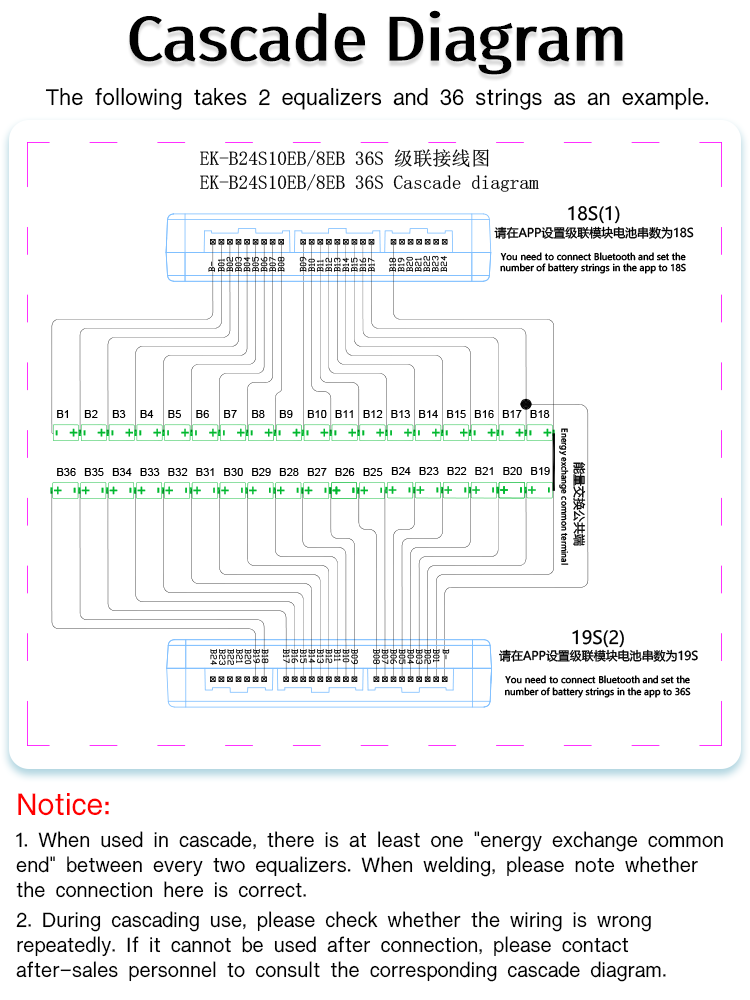

EK-24S10EB supports cascading use, and at least one battery between
every two equalizers is the "common end of energy exchange". The
following uses the 36S as an example to describe how to install and
connect cables:
