Smart Active Balancer Equalizer 24s 12-72volt 4A max - NMC/ LFP -
For Lithium Battery Packs
The 100AH capacity battery pack can reach less than 1MV after being
fully charged and balanced. The smaller the capacity, the better
the effect.
With its advanced features, user-friendly interface, and robust
construction, the Enerkey 2-24S 4A Active Balancer is an ideal
solution for a wide range of applications,
including electric vehicles, energy storage systems, and portable
power solutions. Its ability to actively balance battery packs with
up to 24 cells makes it a versatile and reliable choice for both
hobbyists and professionals alike.
Technical Parameters
| Product model | 4A Smart Active Balancer for 2-24s (EK-24S4EB) |
| Supported battery type | NCM / LFP/ LTO(Li-ion/Lifepo4/Lto) |
| Single cell voltage collection range | |

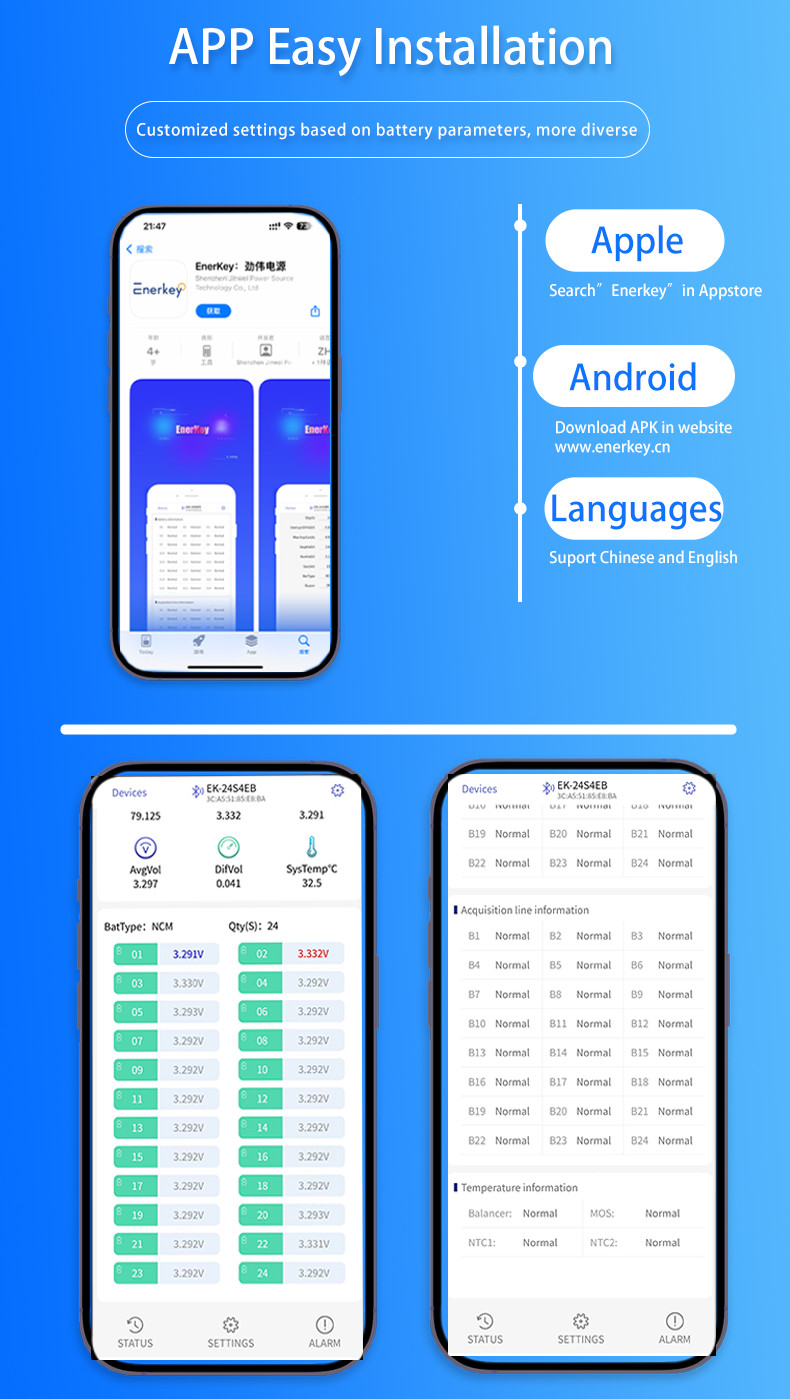

| Undervoltage protects sleep voltage | APP can be customized Settings :1.5-4.2V |
| Equilibrium method | Time-sharing single channel transfer, point-to-point energy
transfer |
| Reverse protection | Support disorderly power on detection/protection |
| Equilibrium current | APP can be customized Settings: 1A~4A |
| Whether an external power supply is required | When the total battery system voltage is below 25V,
An external booster module or an external power supply is required. |
| Voltage equalization accuracy | APP can be customized Settings :1mV(TYP) |
| Wire cascading | |
| Power failure detection function | |
| Wrong wire protection function | |
| Fault alarm function | |
| Buzzer | APP can be customized Settings |
| Power dissipation | At equilibrium≈1W,Stop equilibrium≈0.5W |
| Operating temperature | |
Application
| Base station backup power supply,Solar power station |
Packing List
Use Manual
Wiring Diagram
When used for battery packs with less than 24 string cells in
series, the empty pin is suspended.
When used for battery packs with a total voltage of less than 25V,
an external DC power supply is required
EK-24S4EB supports cascading use, and at least one battery between
every two equalizers is the "common end of energy exchange". The
following uses the 32S as an example to describe how to install and
connect cables:
Notice:
1.When used in cascade, there is at least one "energy exchange
commonend" between every two equalizers. When welding, please note
whetherthe connection here is correct.
2.During cascading use, please check whether the wiring is
wrongrepeatedly.lf it cannot be used after connection, please
contactafter-sales personnel to consult the corresponding cascade
diagram.
