Capacitive energy transfer balance board (high precision 1mv,
point-to-point energy transfer balance).
Blue Bluetooth status indicator: always on, the Bluetooth link is
successful; flashing, the Bluetooth link is disconnected.
Advanced active balance means that energy transfer does not need to
set up the top balance of the battery. The best working condition
is to repair the voltage balance in the full voltage range of the
battery,
while the backward passive discharge balance needs to set up the
top balance to perform the top pair discharge alignment and
balance. The working principles of the two balance are different,
and the system settings are also different.
Technical Parameters

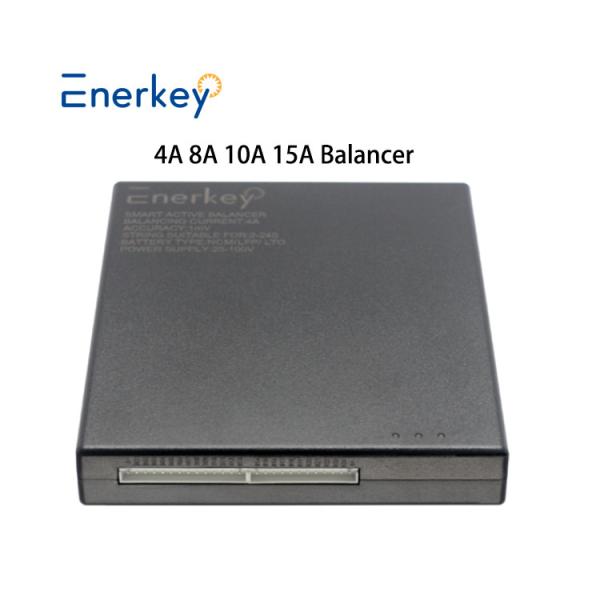

| Product model | 4A Smart Active Balancer for 2-24s (EK-24S4EB) |
| Supported battery type | NCM / LFP/ LTO(Li-ion/Lifepo4/Lto) |
| Single cell voltage collection range | |
| Undervoltage protects sleep voltage | APP can be customized Settings :1.5-4.2V |
| Equilibrium method | Time-sharing single channel transfer, point-to-point energy
transfer |
| Reverse protection | Support disorderly power on detection/protection |
| Equilibrium current | APP can be customized Settings: 1A~4A |
| Whether an external power supply is required | When the total battery system voltage is below 25V,
An external booster module or an external power supply is required. |
| Voltage equalization accuracy | APP can be customized Settings :1mV(TYP) |
| Wire cascading | |
| Power failure detection function | |
| Wrong wire protection function | |
| Fault alarm function | |
| Buzzer | APP can be customized Settings |
| Power dissipation | At equilibrium≈1W,Stop equilibrium≈0.5W |
| Operating temperature | |
Application
| Small appliances, electric toys, electric balance car/bicycle,
outdoor power supply |
Packing List
Use Manual

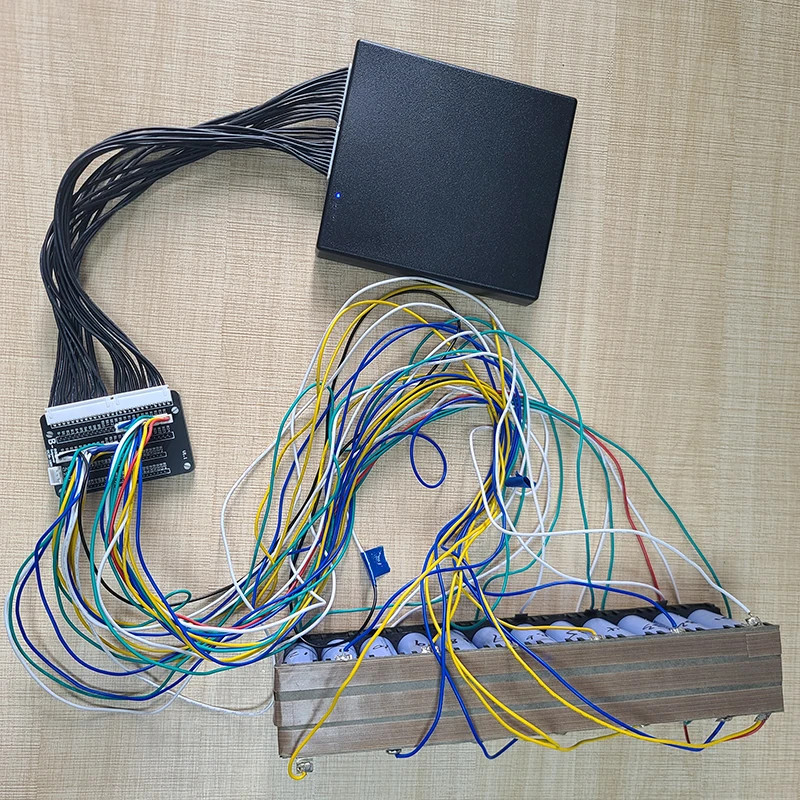

Wiring Diagram
When used for battery packs with less than 24 string cells in
series, the empty pin is suspended.
When used for battery packs with a total voltage of less than 25V,
an external DC power supply is required
EK-24S4EB supports cascading use, and at least one battery between
every two equalizers is the "common end of energy exchange". The
following uses the 32S as an example to describe how to install and
connect cables:
Notice:
1.When used in cascade, there is at least one "energy exchange
commonend" between every two equalizers. When welding, please note
whetherthe connection here is correct.
2.During cascading use, please check whether the wiring is
wrongrepeatedly.lf it cannot be used after connection, please
contactafter-sales personnel to consult the corresponding cascade
diagram.
