Lithium-ion batteries have been widely used in new energy vehicles (NEV) as large energy
storage systems (EES). Balancing among series-connected cells is necessary to avoid overcharging or over-discharging as well as improve the amount of usable energy. Different from
passive balancing, active balancing redistributes charges among cells or control cell output
powers, further improving battery efficiencies.

A new active balancing topology and its control algorithms are finally proposed by Enerkey,One supercapacitor is used in the balancing circuit which replaces the highest state of
charge (SOC) cell and is charged during the vehicle regeneration process. The supercapacitor also transfers energy to the lowest SOC cell after it is fully charged. This new balancing
strategy can not only improve balancing efficiency due to fewer times of energy conversion
but also reduce balancing time compared to the single capacitor balancing.

Technical Parameters

EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
Product strings	4S	6S	8S	10S	12S	14S	16S	17S	21S
Suitable strings	3-4S	4-6S	6-8S	8-10S	9-12S	9-14S	12-16S	13-17S	17-21S

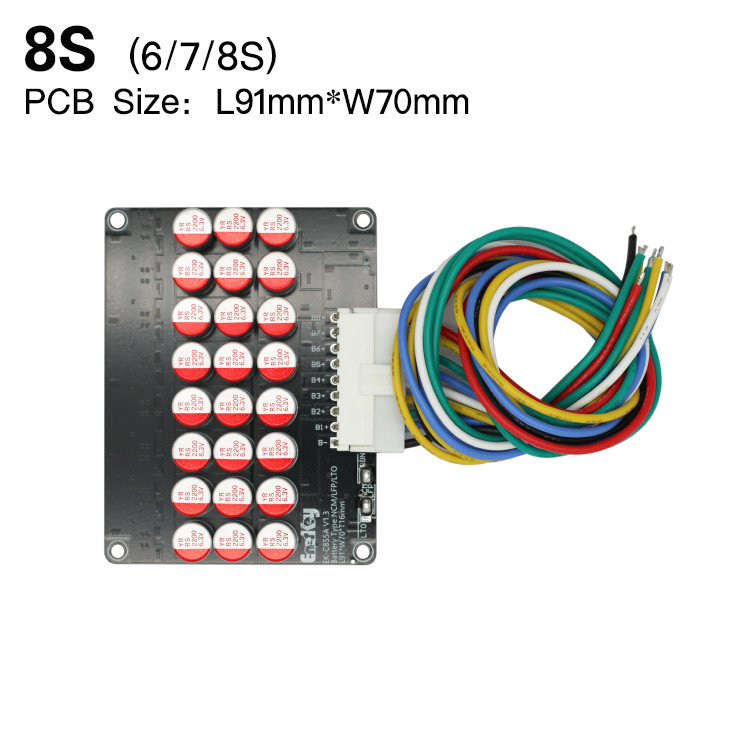

Size(LxWmm)	66*46	69*69	91*70	114*70	137*70	125*80	125*91	115*102.5	145*130
Weight with box(kg)	0.13	0.16	0.18	0.24	0.25	0.28	0.32	0.33	0.39
Thickness	16mm								18mm
Battery Type	NCM/LFP	NCM/LFP/LTO
Material	FR-4/HASL
Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V
	LTO version : 1.8-4.2V

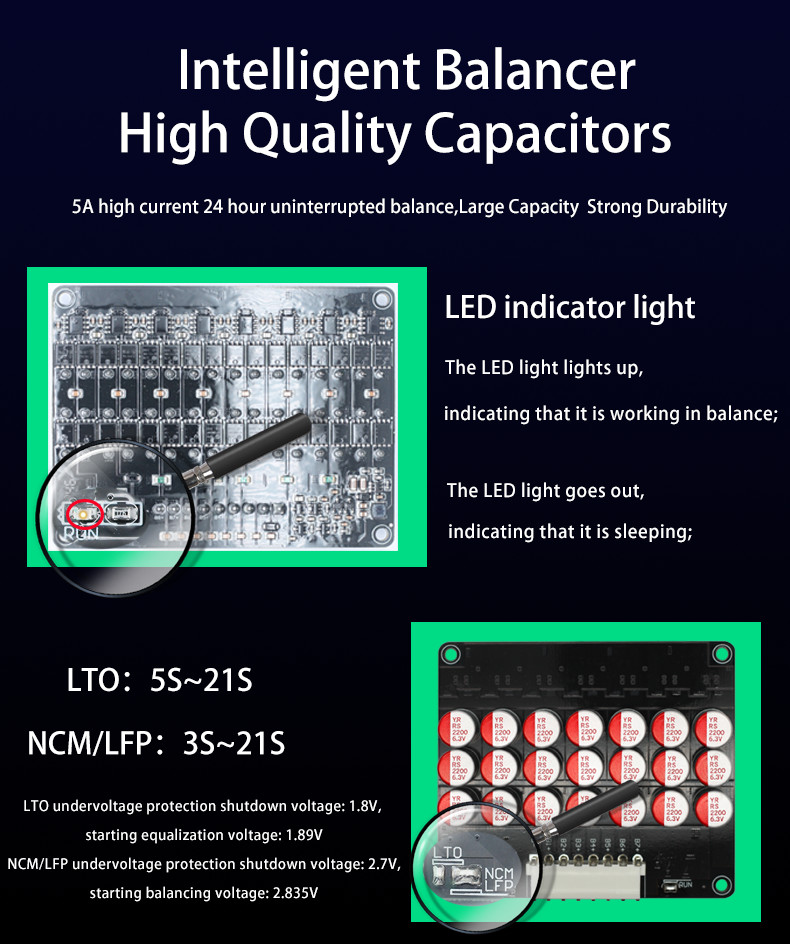

Undervoltage protects sleep voltage	NCM/LFP version＜2.7V
	LTO version＜1.8V

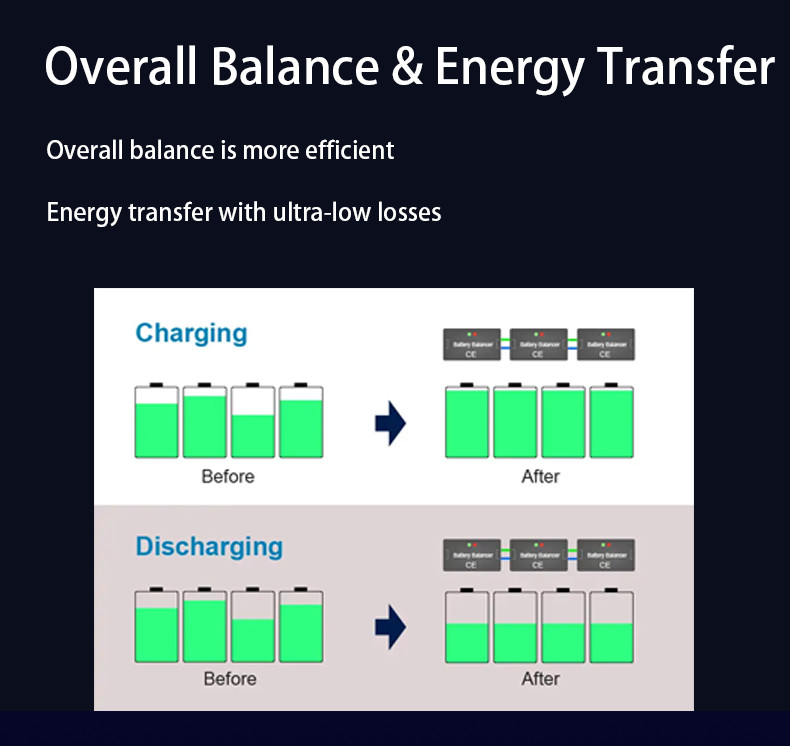

Equilibrium method	The whole battery group simutaneously participates in the energy transter active equalizatior
Equilibrium current	0.1V Differential pressure 1A Balanced current,
	the differential pressure is proportional to the balanced current,
	the maximum allowable operating current is 5.5A
Voltage equalization accuracy	5mV (typical value)
External power supply	No need for an external power supply,
	relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃

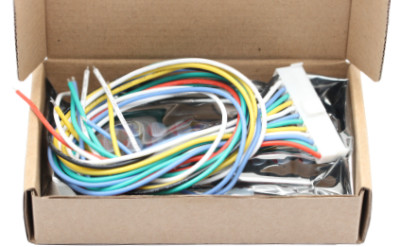

Packing List

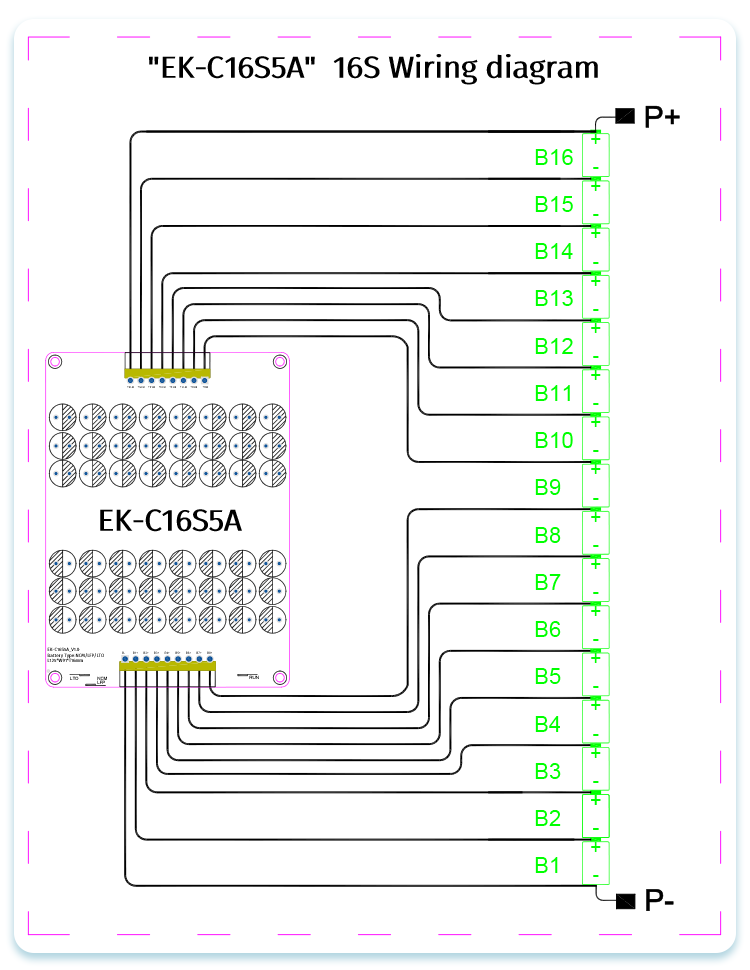

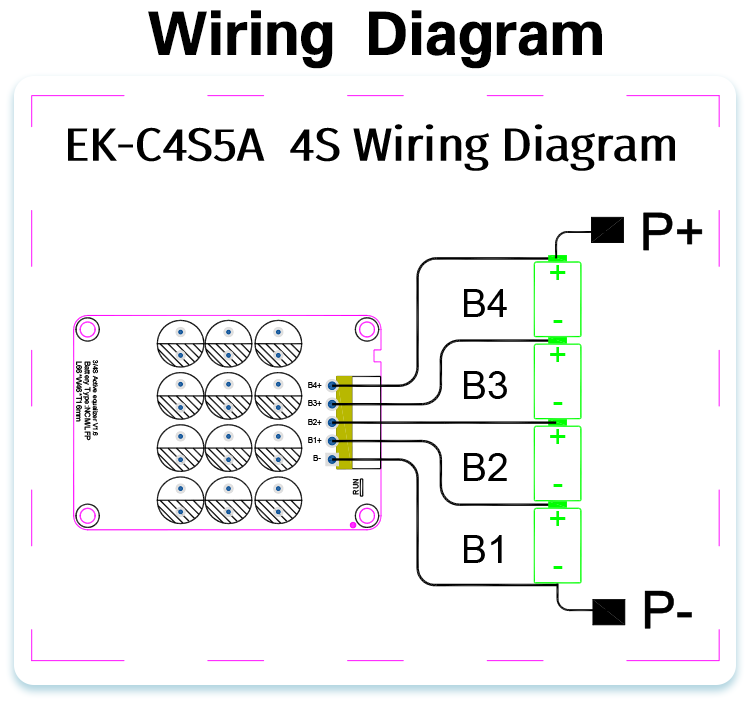

Wire connect

NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
