Technical Parameters

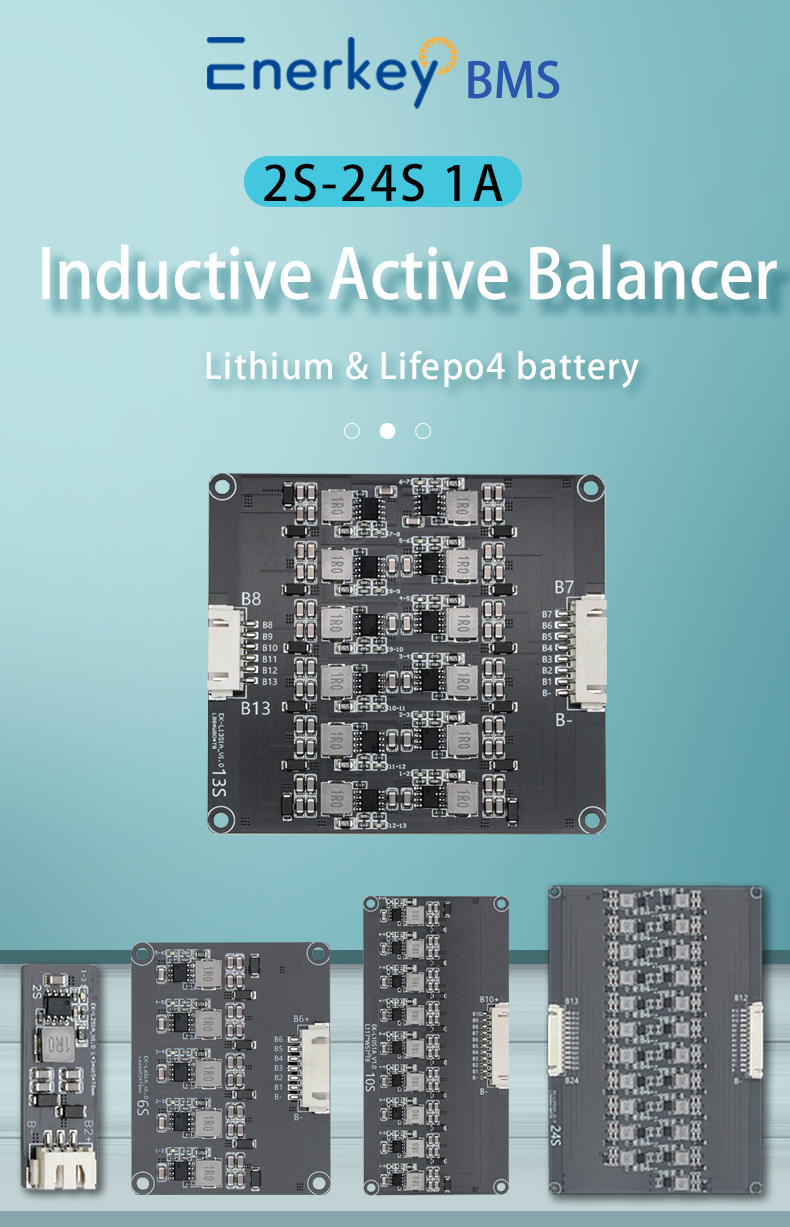

EnerKey BMS Active Balancer 1A 2S 3S 4S 5S 6S 7S 8S 9S 10S 11S 12S
13S 14S 15S 16S 17S 18S 19S 20S 21S 22S 23S 24S NMC LFP LI-ION
lifepo4 Balancer Inductive Balancer |
|
Strings | | | | | | | | | |
| | | | | | | | | |
| L*W*T8mm |
| Weight(kg) | 0.011 | 0.016 | 0.023 | 0.028 | 0.034 | 0.04 | 0.047 | 0.053 | 0.059 |
Strings | | | | | | | | | |
| 84*67 | 88*80 | 88*80 | 93*93 | 93*93 | 105*93 | 107*93 | 119*98 | 120*98 |
| L*W*T8mm |
| Weight(kg) | 0.06 | 0.068 | 0.072 | 0.08 | 0.084 | 0.091 | 0.095 | 0.105 | 0.11 |
Strings | | | | | 24S |
| | | | | |
| L*W*T8mm |
| Weight(kg) | 0.119 | 0.124 | 0.133 | 0.137 | 0.143 |
Supported battery type | |
Cascading | Support(Don't advice) |
Single cell voltage collection range | NCM/LFP version :3.0V-4.5V |
Equilibrium method | Detect the nearby voltage difference is greater than 0.1V totrigger
the start of balanced, |
the adjacent battery voltage difference is less than 0.03V to stop
working. |
| 0.05V voltage difference balancing current 0.5A
0.1V voltage difference reaches the maximum balancing current of 1A |
Voltage equalization accuracy | Adjacent voltage difference 30mV (typical value) |
| Undervoltage protects sleep voltage | Enter sleep state when the adjacent voltage difference is less than
30mV |
| No need for an external power supply, |
relying on the internal energy transfer of the battery to achieve
sdjacent equalization. |
Quiescent current | |
Operating Temperature | |
This balance module is only suitable for battery packs with
capacity below 30AH! |
Packing List
Wire connect
Wiring definition
B-,the total negative pole of the battery pack(the negative pole of
the first battery).
B1, the positive electrode of the first battery.
B2, the positive electrode of the second battery.
B3..... and so on.
Direction for use
①The first, terminal wire is soldered to the battery
pack.Next,Connect the terminal wire to the PCBA.
(2)13 or more string plugs need to be inserted obliquely,first
touch the B-pins and insert them obliquely upwards,otherwise it may
cause the board to burn out.
