As the number of battery cycles increases, the rate of battery capacity decay is inconsistent, leading to a serious imbalance in battery voltage. The “battery barrel effect” will influence the service life of your battery. That’s why you need a active balancer for your battery packs.

Different from inductive balancer, capacitive balancer can achieve the whole group balance. It doesn’t need voltage difference between adjacent batteries to start balancing. After the device is activated, each battery voltage will reduce the capacity decay caused by the battery barrel effect and prolong the duration of the problem.

Technical Parameters

EnerKey BMS Active Balancer 5A 3S 4S 5S 6S 7S 8S 14S 16S 18S 19S 20S 21S LFP LTO LI-ION lifepo4 Balancer Capacitor Balancer
Product strings	3S	4S	5S
Suitable strings	3S	3-4S	4-5S
Product Size(mm)	L66*W35*T16	L66*W46*T16	L69*W58*T16
Weight with box	0.12kg	0.13kg	0.15kg
Battery Type	NCM/LFP	NCM/LFP	NCM/LFP/LTO
Suitable capacity	30ah-300ah
Balanced Cascading	Support balanced cascading for battery packs, for example , it can cascade for 11S , 24S ,36S , 48S....and so on
Single cell voltage collection range	NCM/LFP version : 2.7V-4.2V
	LTO version : 1.8-4.2V
Undervoltage protects sleep voltage	NCM/LFP version＜2.7V
	LTO version＜1.8V
Equilibrium method	Patented (Patent No.: ZL 2019 1 1259513.3) balanced architecture Fit capacitor method, the entire battery pack is balanced at the same time. Connect to the battery pack for automatic balancing (default). You can add a switch to manually turn on or off balancing.
Equilibrium current	0.1V Differential pressure 1A Balanced current,
	the differential pressure is proportional to the balanced current,
	the maximum allowable operating current is 5.5A
Voltage equalization accuracy	5mV (typical value)
External power supply	No need for an external power supply,
	relying on the internal energy transfer of the battery to achieve sdjacent equalization.
Quiescent operating current	7mA, the total string draws power
Sleep standby current	0.1mA(typical value)
Operating Temperature	-20℃ ~ +60℃

Packing List

Wire connect

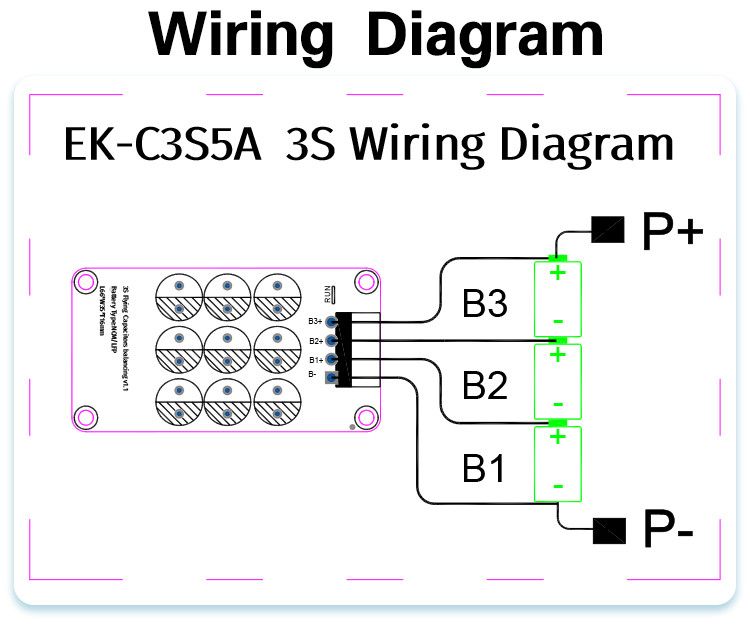

A single EK-C3S5A supports the use of 3 string battery packs. The wiring method is as follows:

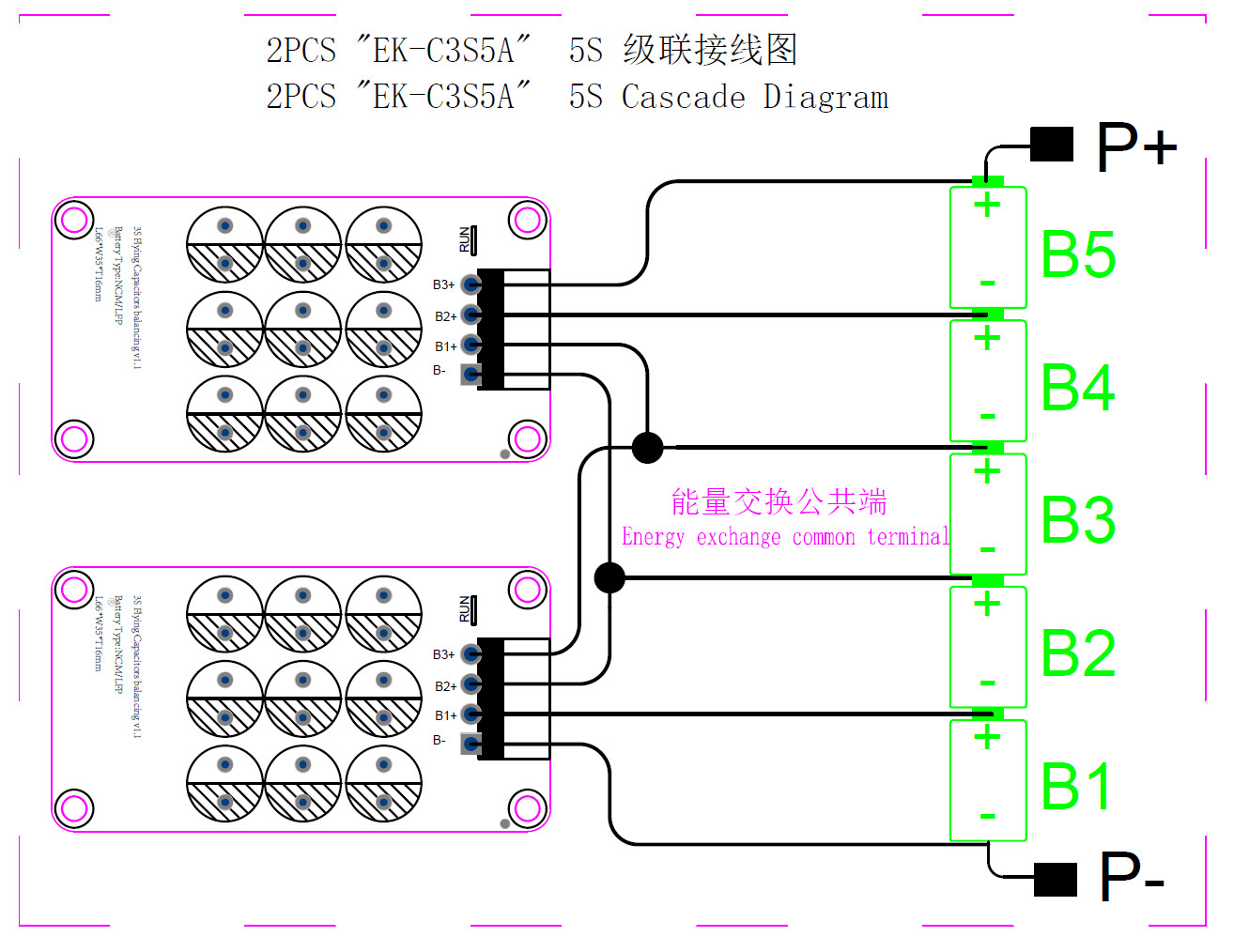

EK-C3S5A supports cascading battery packs. Fox exmple, 2pcs of 3s cascade to 5s, see below drawing:

NOTE:As shown in the figure above,there can be multiple common ends of energy exchangeso that the efficiency of equilibrium will be higher;It is also possible to use only one common end of theenergy exchange atthejunction of two modules.The other free feet are suspended, and it is best todistribute the number of strings equally on each board.If you need the cascade diagram for more strings, Please contact our online service, Thanks.
