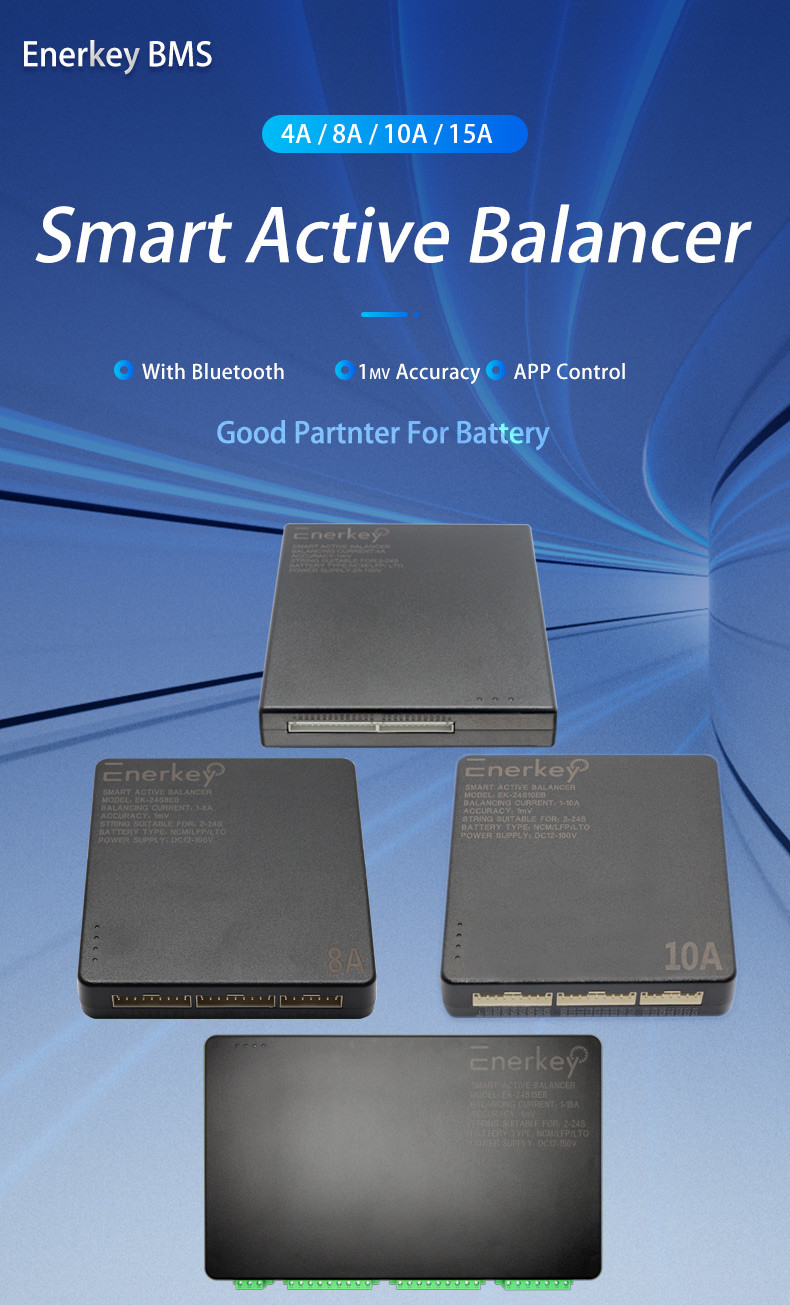

15A SmartEnerKey New 4TH 4A 8A 10A 15A Smart Active Balancer 3S 4S
5S 6S 8S 14S 16S 20S 21S 22S 24S Lifepo4 / Li-ion/ LTO Battery
Equalization For Battery repair and Home energy storage system.
1. The EnerKey 4A 8A 10A 15A Smart Active Balancer is specifically
designed to balance the voltage and charge of each cell in your
battery pack, ensuring a longer lifespan for your battery.
2. The balancing accuracy of 1MV makes this product stand out
amongst others in the market. The board supports a range of
voltages from 12V to 120V, you can be assured of the safety and
efficiency of your battery.
3. We use only high-quality materials, and our product is
manufactured to comply with industry standards and CE
certification. The EnerKey 4A 8A 10A 15A Smart Active Balancer is
durable and reliable, making it the perfect choice for cyclists who
value quality and performance.
Our product offers significant benefits, which include
-Keeping your battery cells balanced
-Extending the overall lifespan of your battery
-Increasing the efficiency of your battery pack
-Preventing any safety hazards that could arise from using an
unbalanced battery
Technical Parameters

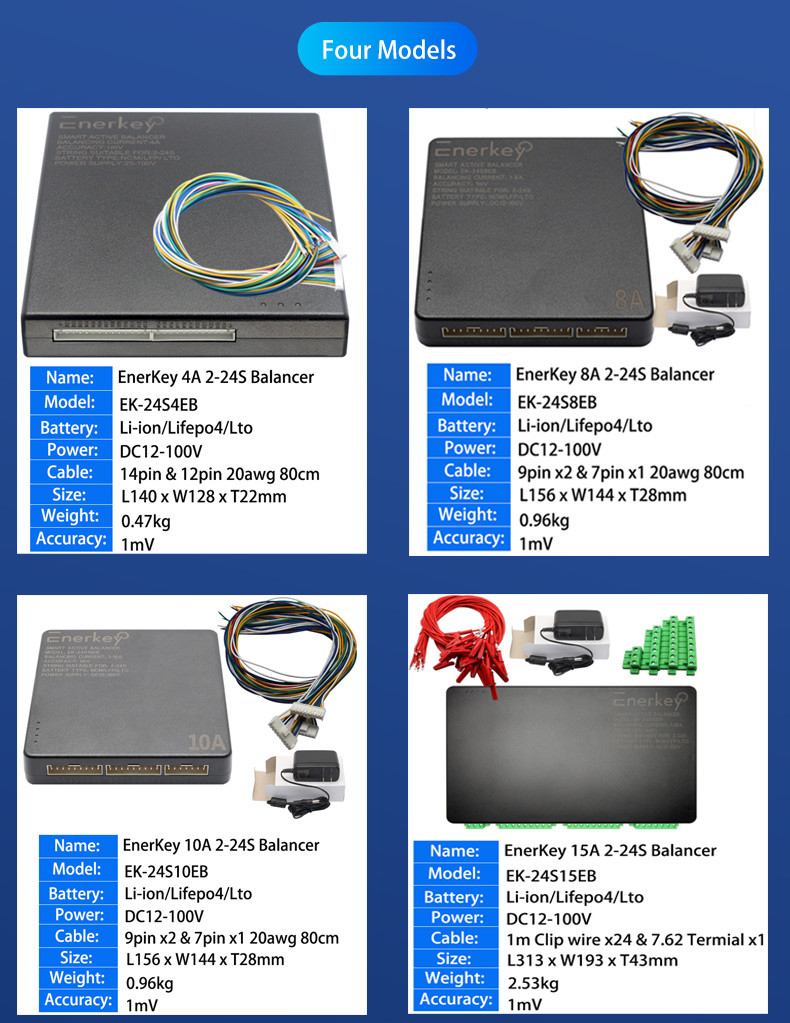

| Product model | 4A/8A/10A/15A Smart Active Balancer for 2-24s |
| Supported battery type | NCM / LFP/ LTO(Li-ion/Lifepo4/Lto) |
| Single cell voltage collection range | |
| Undervoltage protects sleep voltage | APP can be customized Settings :1.5-4.2V |
| Equilibrium method | Time-sharing single channel transfer, point-to-point energy
transfer |
| Reverse protection | Support disorderly power on detection/protection |
| Equilibrium current | APP can be customized Settings: 1A~15A |
| Whether an external power supply is required | Battery-operated(Accuracy:3mV)4S ~ 24S
DC power supply(Accuracy:1mV)2S ~ 24S |
| Voltage equalization accuracy | APP can be customized Settings :1mV(TYP) |
| Wire cascading | |
| Power failure detection function | |
| Wrong wire protection function | |
| Fault alarm function | |

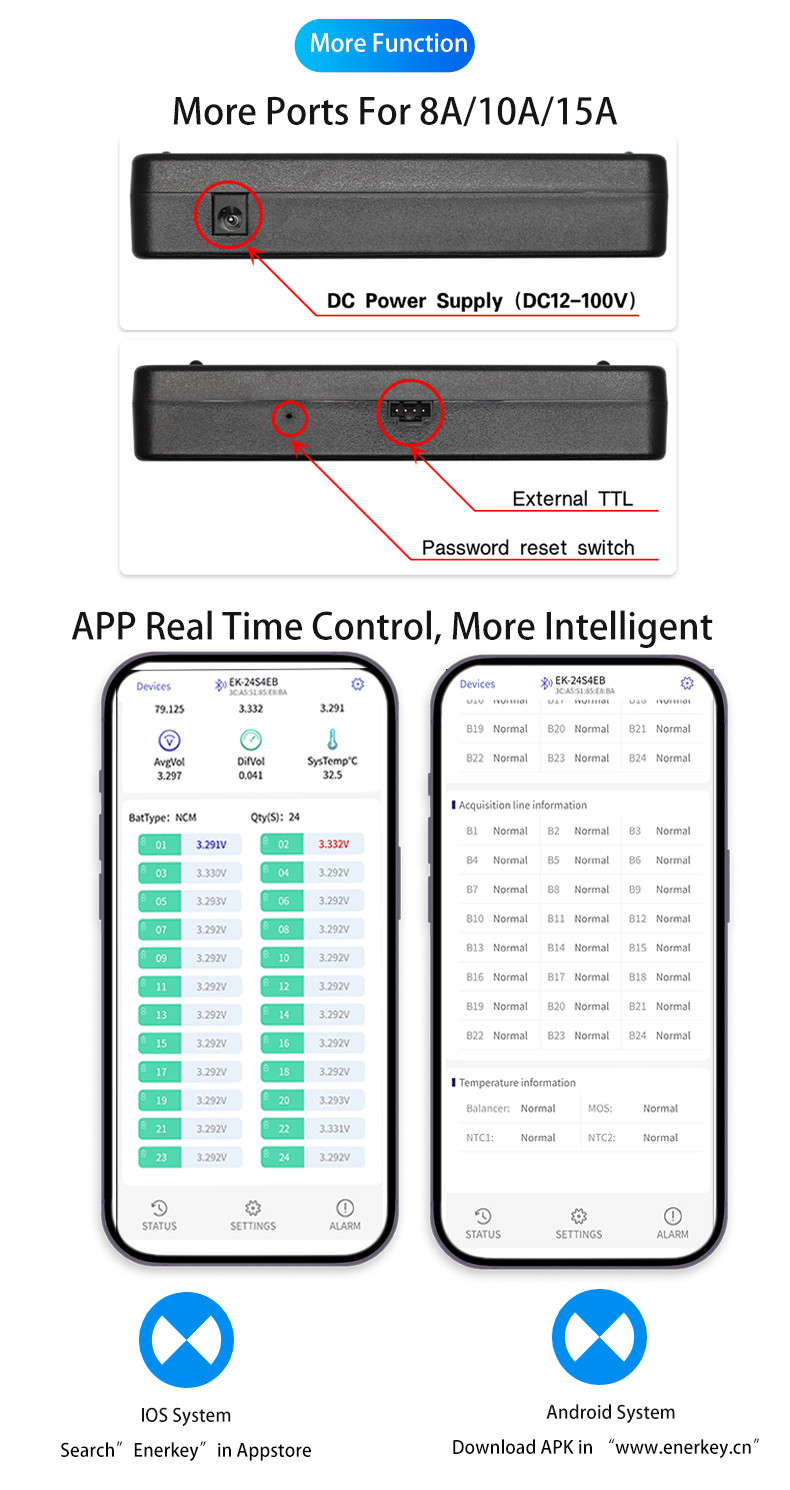

| Buzzer | APP can be customized Settings |
| Power dissipation | At equilibrium≈1W,Stop equilibrium≈0.5W |
| Operating temperature | |
Application
| Small appliances, electric toys, electric balance car/bicycle,
outdoor power supply,Home energy storage |
Use Manual
Wiring Diagram
The use of battery power or DC adapter power supply, its wiring
method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy
±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing
accuracy ±1mV.
When less than 24 battery strings are connected in series, empty
pins are suspended. The following uses 16S as an example.
It supports cascading use, and at least one battery between every
two equalizers is the "common end of energy exchange". The
following uses the 36S as an example to describe how to install and
connect cables:
FAQ
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more
than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international
standards certification.
* We can provide you with factory price, Welcome you to visit our
factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power
batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your
battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the
battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and
batches?
*Our minimum order quantity is 1 piece, ODM customization is
available.
* 1~3 days delivery of existing samples, 3~10 days delivery of
customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support
online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment
method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY,
GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100%
testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard
certification.
* Provide 3 years after-sales warranty service. Free spare units
for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery,
you can consult our customer service and we will provide it for you
equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message
online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see
below). We are so glad to work with you.
