Brand Name : | ENERKEY |

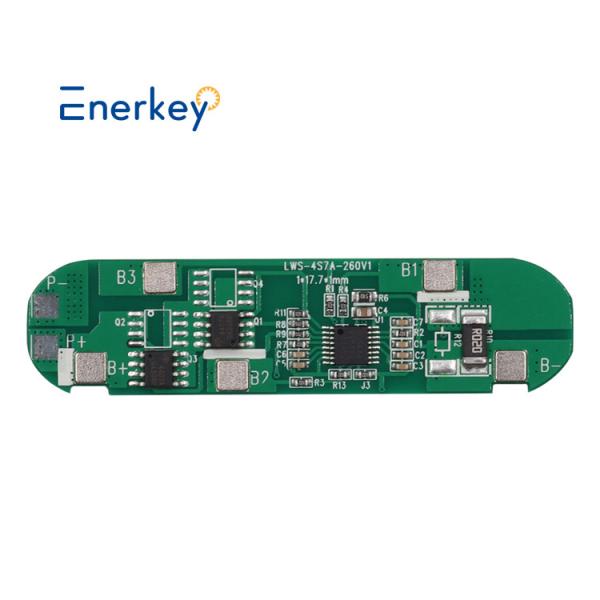

Model Number : | JW-4S7A-260 V1 |
Supply Ability : | 50000 Piece/Pieces per Month |
Price : | $1.60/pieces 2-999 pieces |
Certification : | ISO9001/ROHS/CE |
Electric Parameter | ||||||||||||
Model:JW-B4S7A-260 V1 | ||||||||||||
NO. | Project | Min. | Typ. | Max. | Unit | |||||||
1 | voltage | Charging voltage | 16.8 | V | ||||||||
Balance voltage for single cell | / | / | / | V | ||||||||
2 | Current | Balance current for single cell | / | / | / | mA | ||||||
Current consumption | 50 | uA | ||||||||||
Maximal continuous charging current | 7 | A | ||||||||||
Maximal continuous discharging current | 7 | A | ||||||||||
3 | Over charge protection | Overcharge detection voltage for single cell | 4.00 | 4.25 | 4.50 | A | ||||||
Overcharge detection delay time | 0.5 | 1.5 | S | |||||||||
Overcharge release voltage for single cell | 4.10 | 4.15 | 4.20 | V | ||||||||
4 | Over discharge protection | Overdischarge detection voltage for single cell | 2.62 | 2.7 | 2.78 | V | ||||||
Overdischarge detection delay time | 500 | 1500 | mS | |||||||||
Overdischarge release voltage for single cell | 2.9 | 3.0 | 3.1 | V | ||||||||
5 | Overcurrent protection | Over current detection voltage | 175 | 200 | 215 | mV | ||||||
Over current detection current | 15 | 20 | 25 | A | ||||||||
Detection delay time | 500 | 1500 | mS | |||||||||
Release condition | Cut load,Automatic recovery | |||||||||||
6 | Short protection | Detection condition | Exterior short circuit | |||||||||
Detection delay time | 200 | 500 | μS | |||||||||
Release condition | Cut load,Automatic recovery | |||||||||||
7 | Resistance | Protection circuitry (MOSFET) | 50 | mΩ | ||||||||
8 | Temperature | Operating Temperature Range | -20 | 60 | ℃ | |||||||
Storage Temperature Range | -20 | 85 | ℃ |
![]() |
