Technical Parameters
Enerkey Ideal Diode Module 40V 80V 50A Photovoltaic Solar Base
Station Industrial Control Electric Car Battery in Parallel For
Battery charging anti-backfilling |
| Product model | EK-iD40V50A | EK-iD80V50A |
Working voltage range | | 9-80V |
Product Size(mm) | | L52xW40XT17 |
Weight with box | 0.3kg | 0.32kg |
| MOS quantity | 1 | 1 |
Battery Type | NCM/LFP/LTO | NCM/LFP/LTO |
Continuous current | 50A | 50A |
| Peak starting current | 50A | 50A |
| On-going internal resistance | 0.7mR | 1.5mR |
Quiescent operating current | |
Copper foil thickness | |
PCB material | |

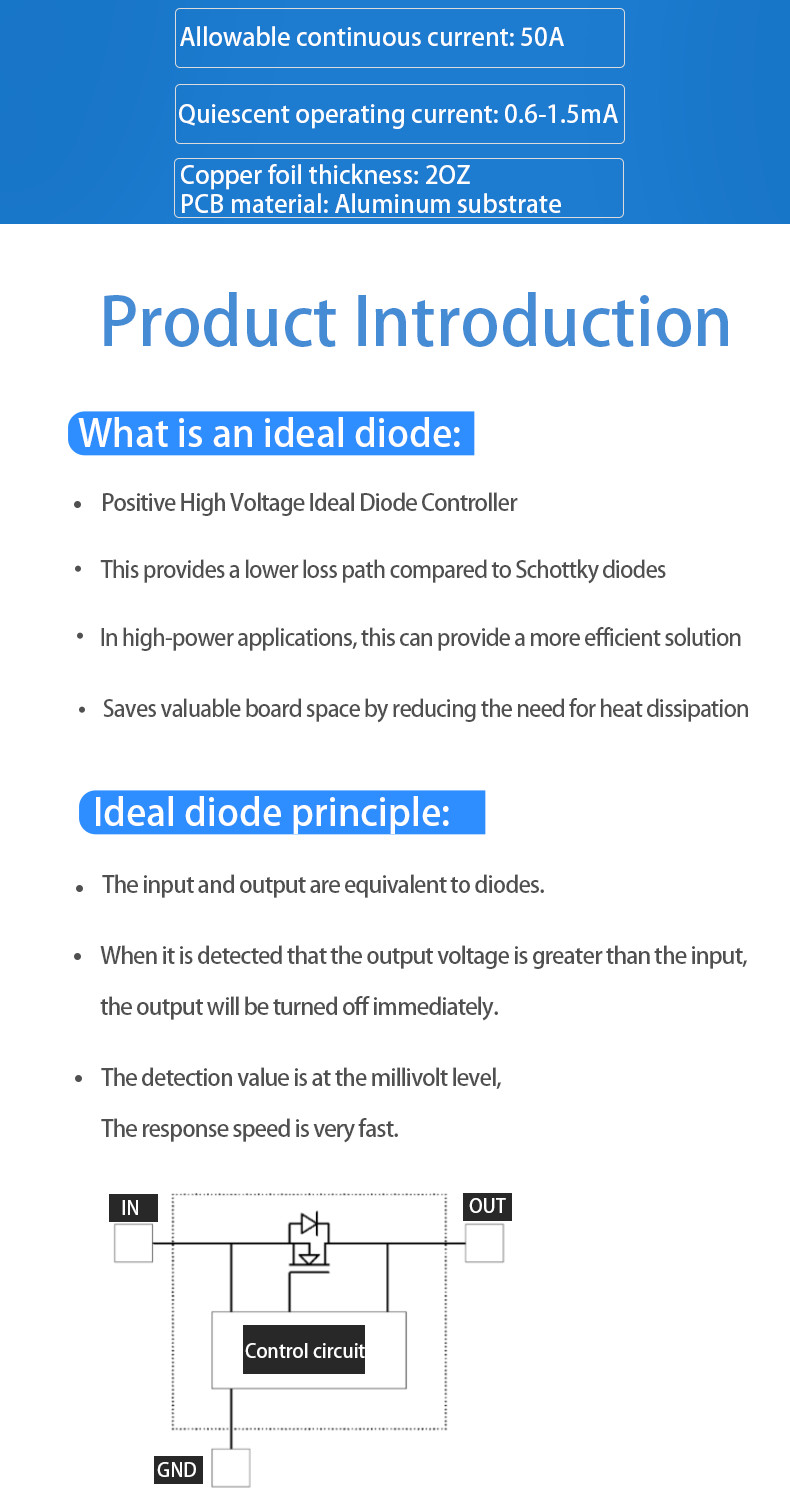

| Working principle | The input and output are equivalent to diodes. It detects that the
output voltage is greater than the input and immediately turns off
the output. The detection value is at the millivolt level and the
response speed is very fast. |
Application | 1. Solar panels prevent backflow (anti-backflow);
2. Battery charging prevents backflow (anti-backflow)
(anti-backflow);
3. DC-DC constant voltage and constant current module output
prevents backflow
4. Other occasions where backflow prevention (anti-backflow) is
required |
| Accessories | Terminal lug*3;
IN+/OUT+ terminal lug : OTZ6-5, screw M5
GND terminal lug : OTZ2.5-3, screw M3 |
Operating Temperature | |
Size $ Packing List
Special Note:
1. This version is the latest optimized version. If the positive
and negative poles are connected reversely, the module will not be
burned, which improves the safety of installation;
2. An ideal diode is a diode with ultra-low internal resistance as
the name implies. The conduction voltage drop of an ordinary diode
is more than 0.6V.
The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum
substrate PCB trace are insulated with a withstand voltage of
1000V, so there is no need to worry about breakdown problems.
Thermal conductivity is 20 times faster than FR4 glass fiber and
can be directly attached to large heat sinks.
4. This ideal diode module cannot be used in rectifier circuits!
5. This module is not suitable for modifying dual batteries of
electric vehicles!
