Technical Parameters
Enerkey Ideal Diode Module 80V 200A /40V 80V 280A /100V 200V 300A
Photovoltaic Solar Base Station Industrial Control Electric Car
Battery in Parallel For Battery charging anti-backfilling |

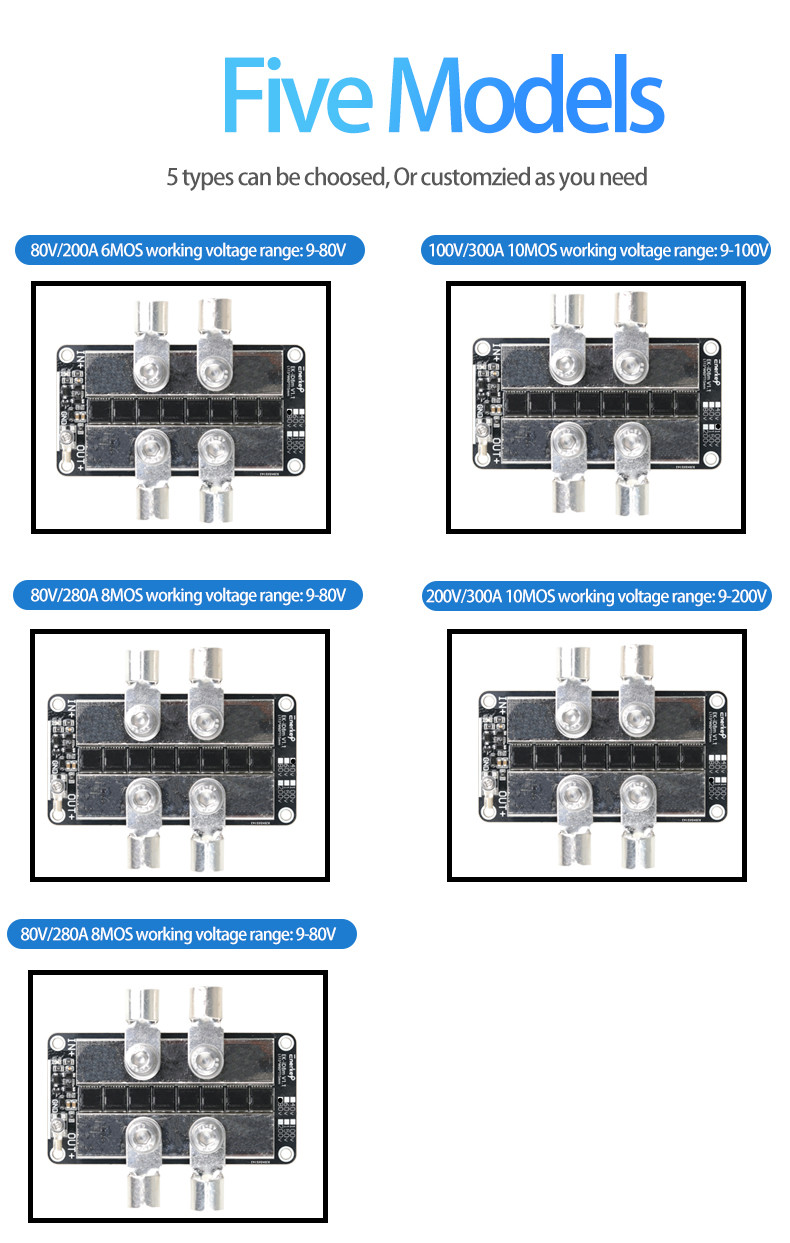

| Product model | EK-iD40V280A EK-iD80V280A | EK-iD80V200A | EK-iD100V300A EK-iD200V300A |
Working voltage range | 40V280A: 9-40V 80V280A: 9-80V | 9-80V | 100V300A: 9-100V 200V300A: 9-200V |
Product Size(mm) | | L105*W60*T28 | L113*W60*T28 |
Weight with box | 0.5kg | 0.51kg | |
| MOS quantity | 8 | 6 | 10 |
Battery Type | NCM/LFP/LTO | NCM/LFP/LTO | NCM/LFP/LTO |
Continuous current | 280A | 200A | 300A |
| Peak starting current | 280A | 200A | 300A |
Quiescent operating current | |
Copper foil thickness | |
PCB material | |
| On-going internal resistance | NA |
| Working principle | The input and output are equivalent to diodes. It detects that the
output voltage is greater than the input and immediately turns off
the output. The detection value is at the millivolt level and the
response speed is very fast. |
Application | 1. Solar panels prevent backflow (anti-backflow);
2. Battery charging prevents backflow (anti-backflow)
(anti-backflow);
3. DC-DC constant voltage and constant current module output
prevents backflow
4. Other occasions where backflow prevention (anti-backflow) is
required |
| Accessories | Terminal lug*3;
IN+/OUT+ terminal lug : OTZ50-8, screw M8
GND terminal lug : OTZ2.5-3, screw M3 |
Operating Temperature | |

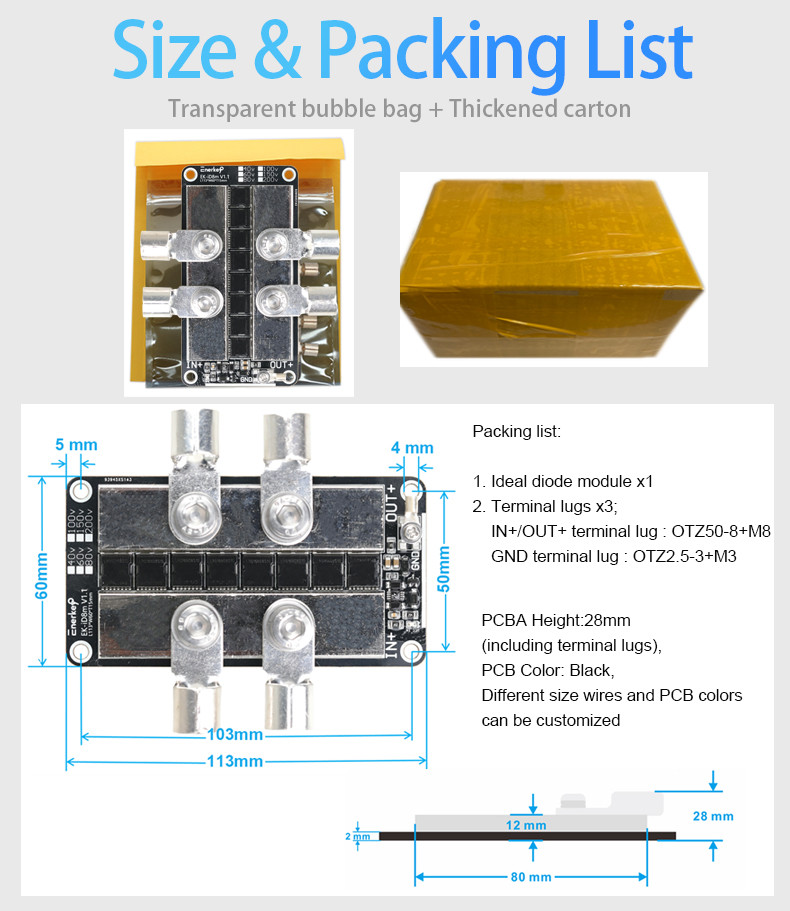

Size $ Packing List
Special Note:
1. This version is the latest optimized version. If the positive
and negative poles are connected reversely, the module will not be
burned, which improves the safety of installation;
2. An ideal diode is a diode with ultra-low internal resistance as
the name implies. The conduction voltage drop of an ordinary diode
is more than 0.6V.
The conduction voltage drop of an ideal diode is almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum
substrate PCB trace are insulated with a withstand voltage of
1000V, so there is no need to worry about breakdown problems.
Thermal conductivity is 20 times faster than FR4 glass fiber and
can be directly attached to large heat sinks.
4. The average overcurrent of a MOS is less than 35A. We use a 300A
MOS.
True standard current, allowing long-term load operation
5. This ideal diode module cannot be used in rectifier circuits!
