Technical Parameters
Enerkey Waterproof potting module 100V 150V 200V 50A Photovoltaic
Solar Base Station Industrial Control Electric Car Battery in
Parallel For Battery charging anti-backfilling |
| Product model | EK-iD100V50AW | EK-iD150V50AW | EK-iD200V50AW |
Working voltage range | | 30-150V | 30-200V |
Product Size(mm) | | L74.5xW76.5xT31 | L74.5xW76.5xT31 |
Weight with box | 0.8kg | 0.84kg | 0.88kg |
| MOS quantity | 2 | 2 | 2 |
Battery Type | NCM/LFP/LTO | NCM/LFP/LTO | NCM/LFP/LTO |
Continuous current | 50A | 50A | 50A |
| Peak starting current | 100A | 100A | 100A |
Quiescent operating current | |
Copper foil thickness | |
PCB material | |

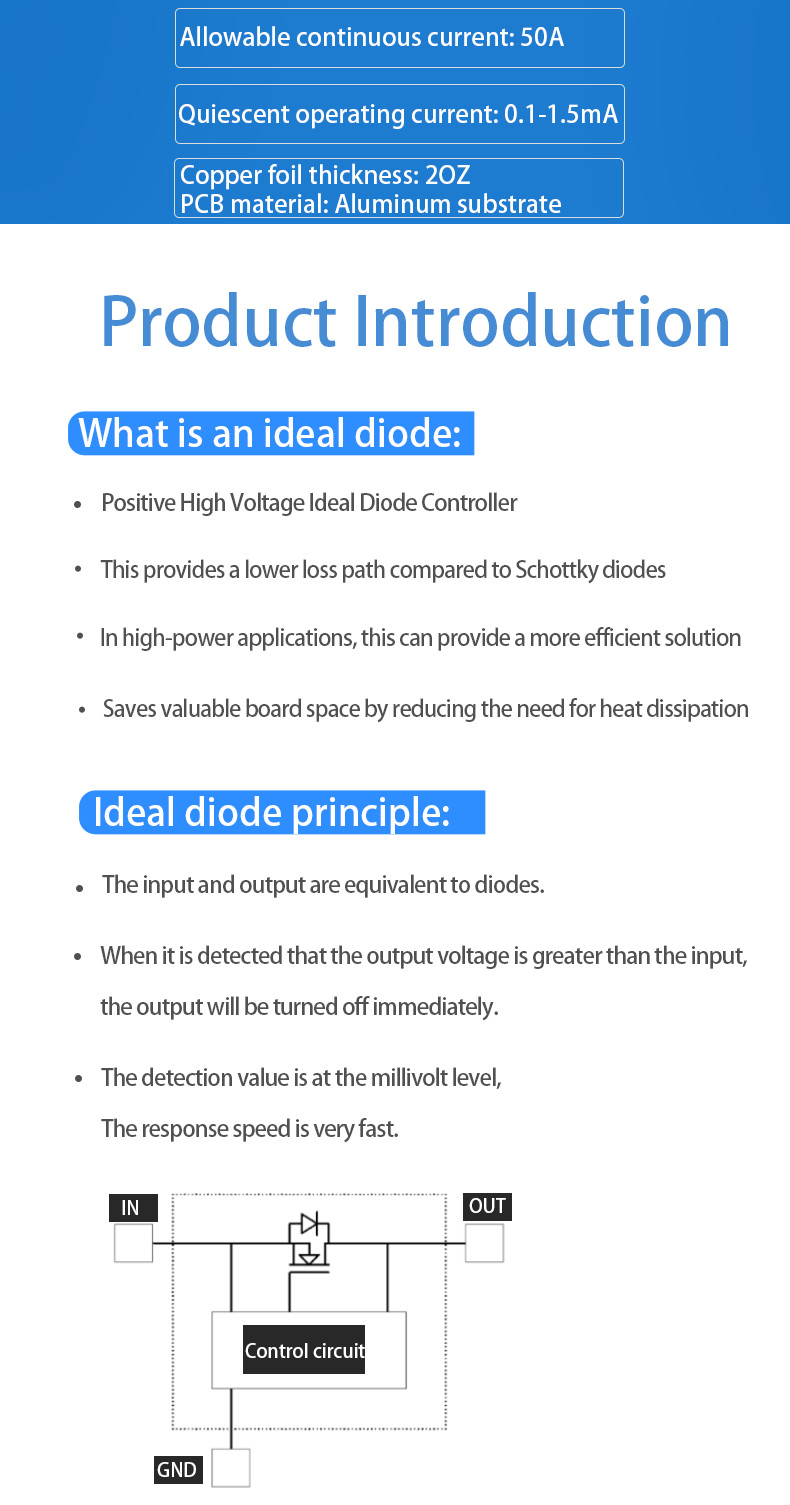

| Working principle | The input and output are equivalent to diodes. It detects that the
output voltage is greater than the input and immediately turns off
the output. The detection value is at the millivolt level and the
response speed is very fast. |
Application | 1. Solar panels prevent backflow (anti-backflow);
2. Battery charging prevents backflow (anti-backflow)
(anti-backflow);
3. DC-DC constant voltage and constant current module output
prevents backflow
4. Other occasions where backflow prevention (anti-backflow) is
required |
| Accessories | Pure copper silicone wire*3
IN+/OUT+ red silicone wire: 10AWG(5.5 sqm) 40CM Screw M5
GND black silicone wire: 16AWG (1 sqm) 40CM screw M6 |
Operating Temperature | |
Size $ Packing List
Special Note:
1. This version is the latest optimized version. The module will
not be burned if the positive and negative poles are connected
reversely, which improves the safety of installation;
2. The ideal diode is a diode with ultra-low internal resistance as
the name implies. The conduction voltage drop of ordinary diodes is
more than 0.6V. The conduction voltage drop of an ideal diode is
almost negligible.
3. The copper foil layer and aluminum base layer of the aluminum
substrate PCB traces are insulated with a withstand voltage of
1000V, so there is no need to worry about breakdown problems. The
thermal conductivity is 20 times faster than FR4 glass fiber, and
can be directly attached to the large heat sink.
4. This ideal diode module cannot be used in rectifier circuits!
5. The waterproof potting module has a thickened radiator, which
has higher heat dissipation efficiency and lower continuous current
heating. It is suitable for modification enthusiasts!
FAQ
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more
than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international
standards certification.
* We can provide you with factory price, Welcome you to visit our
factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power
batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your
battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the
battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and
batches?
*Our minimum order quantity is 1 piece, ODM customization is
available.
* 1~3 days delivery of existing samples, 3~10 days delivery of
customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support
online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment
method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY,
GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100%
testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard
certification.
* Provide 3 years after-sales warranty service. Free spare units
for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery,
you can consult our customer service and we will provide it for you
equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message
online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see
below). We are so glad to work with you.
