    Ideal Diode Module 50A 100V 150V 200V For Solar Battery Anti Backflow

    100V 150V 200V 50A Ideal Diode Module With Waterproof Potting Module For Solar Battery Anti-Backflow

    Product Description

    What values would an ideal diode read?
    Diode test analysis. A good forward-based diode displays a voltage drop ranging from 0.5 to 0.8 volts for the most commonly used silicon diodes. Some germanium diodes have a voltage drop ranging from 0.2 to 0.3 V.


    What Is PCB Potting?
    PCB potting is a method used to protect circuit boards (referred to in these contexts as the substrate) by filling a PCB enclosure with a liquid material called a potting compound or encapsulation resin.

    The potting compound fills the device’s housing and, in most cases, covers the entire circuit board and its components, although in some cases it can be used to pot individual components.


    Potting provides excellent abrasion resistance, as well as protection against heat, chemicals, impacts and other environmental hazards. Typical potting compound materials include epoxy, polyurethane and silicone compounds.


    Ideal Diode Module 50A 100V 150V 200V For Solar Battery Anti Backflow

    Ideal Diode Module 50A 100V 150V 200V For Solar Battery Anti Backflow

    Ideal Diode Module 50A 100V 150V 200V For Solar Battery Anti Backflow

    Ideal Diode Module 50A 100V 150V 200V For Solar Battery Anti Backflow

    Ideal Diode Module 50A 100V 150V 200V For Solar Battery Anti Backflow

    Ideal Diode Module 50A 100V 150V 200V For Solar Battery Anti Backflow


    Technical Parameters

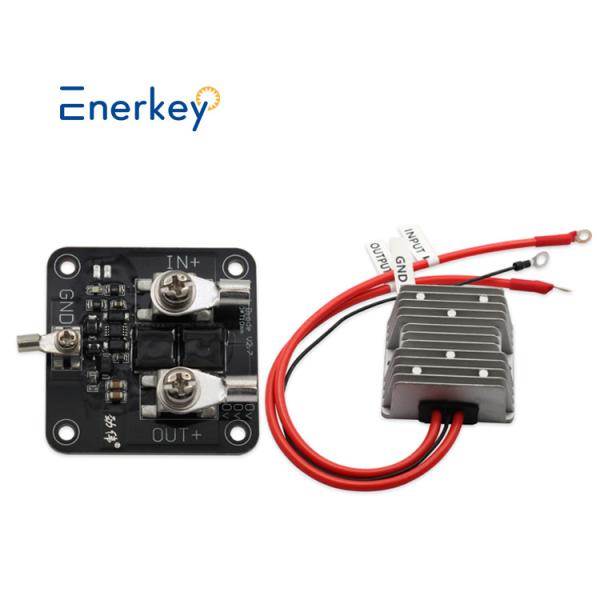

    Enerkey Ideal Diode Module and Waterproof potting module​ 100V 150V 200V 50A Photovoltaic Solar Base Station Industrial Control Electric Car Battery in Parallel For Battery charging anti-backfilling
    Product model

    EK-iD100V50AW

    EK-iD150V50AW

    EK-iD200V50AW

    Working voltage range
    30-100V
    30-150V
    30-200V
    Ideal Diode Size​
    L50xW50xT17mm
    L50xW50xT17mmL50xW50xT17mm
    Potting Module SizeL74.5xW76.5xT31mmL74.5xW76.5xT31mmL74.5xW76.5xT31mm
    Weight with box
    1.2kg/set
    1.23kg/set
    1.25kg/set
    MOS quantity222
    Battery Type
    NCM/LFP/LTO
    NCM/LFP/LTONCM/LFP/LTO
    Continuous current
    50A
    50A50A
    Peak starting current100A100A100A
    Quiescent operating current
    0.1-1.5mA
    Copper foil thickness
    2.0 oz

    PCB material

    Aluminum plate
    Working principleThe input and output are equivalent to diodes. It detects that the output voltage is greater than the input and immediately turns off the output. The detection value is at the millivolt level and the response speed is very fast.
    Application
    1. Solar panels prevent backflow (anti-backflow);
    2. Battery charging prevents backflow (anti-backflow) (anti-backflow);
    3. DC-DC constant voltage and constant current module output prevents backflow
    4. Other occasions where backflow prevention (anti-backflow) is required
    Accessories for ideal diode

    Terminal lug*3;
    IN+/OUT+ terminal lug : OTZ6-5, screw M5
    GND terminal lug : OTZ2.5-3, screw M3

    Accessories for Potting ModulePure copper silicone wire*3
    IN+/OUT+ red silicone wire: 10AWG(5.5 sqm) 40CM Screw M5
    GND black silicone wire: 16AWG (1 sqm) 40CM screw M6
    Operating Temperature
    -40℃ ~ +60℃

    Size $ Packing List

    Ideal Diode Module 50A 100V 150V 200V For Solar Battery Anti Backflow

    Special Note:
    1. This version is the latest optimized version. The module will not be burned if the positive and negative poles are connected reversely, which improves the safety of installation;

    2. The ideal diode is a diode with ultra-low internal resistance as the name implies. The conduction voltage drop of ordinary diodes is more than 0.6V. The conduction voltage drop of an ideal diode is almost negligible.
    3. The copper foil layer and aluminum base layer of the aluminum substrate PCB traces are insulated with a withstand voltage of 1000V, so there is no need to worry about breakdown problems. The thermal conductivity is 20 times faster than FR4 glass fiber, and can be directly attached to the large heat sink.
    4. This ideal diode module cannot be used in rectifier circuits!
    5. The waterproof potting module has a thickened radiator, which has higher heat dissipation efficiency and lower continuous current heating. It is suitable for modification enthusiasts!
