Product Description
4S120A Lithium Battery Protection Board Product Features and
Advantages
Intelligent management expansion, the following functions can be
customized according to customer needs
Multi-protocol communication: Supports Bluetooth, CAN, RS485 and
other interfaces, and can be connected to the host computer to
adjust parameters in real time (such as protection threshold,
balancing strategy).
Customized function: Optional modules such as GPS positioning,
inverter protocol docking, power indicator light, etc. to meet
diversified needs.
Efficient structural design
Same port/split port optional:
Same port design: Shared charging and discharging interface,
simplified wiring (recommended 120A same port model).
Split port design: Independent charging and discharging interface,
supporting higher safety and balanced efficiency (such as 100A
split port model).
Low power consumption and durability
Static power consumption ≤33μA: Ultra-low self-power consumption
design, extended battery standby time.
Industrial-grade protection: The PCB board adopts triple-proof
coating (dust-proof, moisture-proof, and corrosion-proof) to adapt
to harsh environments
Technical Parameters
| | Item type | Parameters | | 1 | Parameter Overview | Product Model | EK-BM3R8S120A | | Product Size(mm) | L95*W68*T15 | | Product Weight(kg) | 0.12 | | Product Material | FR-4 / Lead-free spray tin | | Applicable battery type | Lifepo4 | Li-ion | Lto | SIB | | Applicable battery string number | 3S / 4S / 5S / 6S / 7S / 8S | | Rated discharge current | 120A | 120A | 120A | 120A | | Peak starting current | 300A | 300A | 300A | 300A | | | Item type | Trigger
(time) | Trigger
(time) | Trigger
(time) | Trigger
(time) | Trigger
(time) | Trigger
(time) | Trigger
(time) | Trigger
(time) | | 2 | Charging protection | Overvoltage protection voltage value | 3.65V/1S | 3.50V/1S | 4.25V/1S | 4.05V/1S | 2.85V/1S | 2.75V/1S | 3.95V/1S | 3.80V/1S | | Balanced phase difference voltage value | Trigger voltage difference 30mV / trigger time 0.5S / balance time
10S cycle | | Balanced voltage value | 3.45V | 3.70V | 2.50V | 3.10V | | Overcurrent value | 120A/2S, disconnect charger to recover | | Low temperature value | Charge over-temperature protection 60℃/2S / Release 55℃/2S | | Overtemperature value | Charging low temperature protection -5℃/2S / Release 0℃/2S | | 3 | Discharge protection | Undervoltage protection voltage value | 2.30V/1S | 2.70V/1S | 2.75V/1S | 3.0V/1S | 1.70V/1S | 1.80V/1S | 1.50V/1S | 2.00V/1S | | ①Overcurrent protection value | 150A/2S, disconnect load or activate charging | | ②Overcurrent protection value | 250A/0.5S, disconnect load or activate charging | | Short circuit protection value | 500A/128uS, disconnect load or charge activated | | Low temperature value | Discharge over-temperature protection 65℃/2S, release 60℃/2S | | Overtemperature value | Discharge low temperature protection -20℃/2S, release -10℃/2S | | 4 | Others | Standby current consumption | 25uA | | Motherboard lock voltage | / |
|
Size $ Packing List
Package included:
1 * BMS
1 * NTC Terminal Cable
1 * Switch Cable
1 * Terminal Cable
4 * Terminal Lugs
4 * M5 Screws

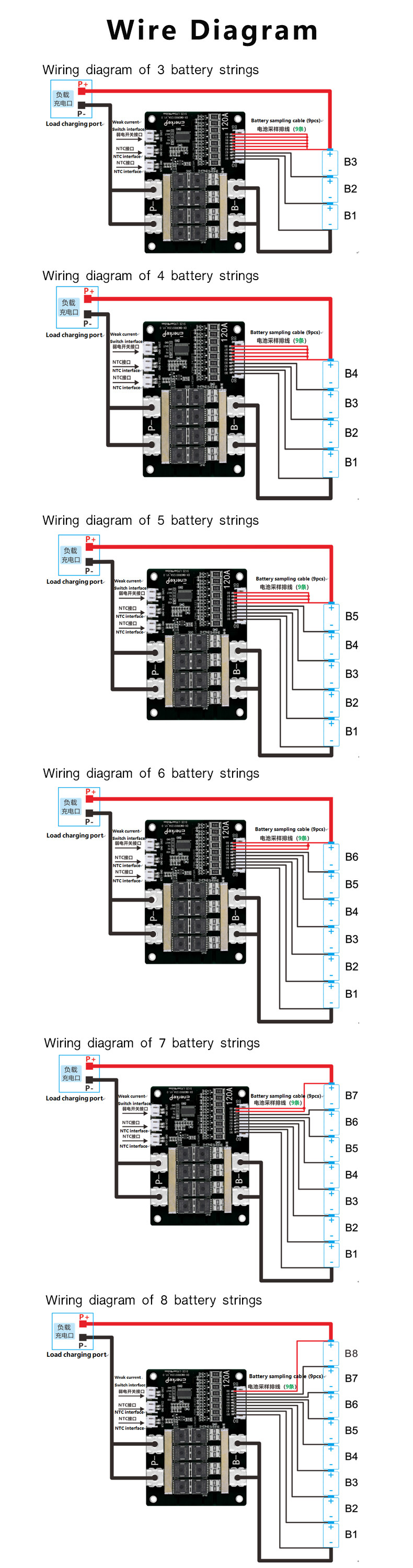

Wire Diagram
Wiring precautions:
1. Installing the protective board requires a certain amount of
technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad
position to the total negative terminal of the battery (the B- wire
should be soldered to a short and thick wire) and solder the wired
terminal to the battery pack first, and then insert the protective
plate.
3. The connection between the battery terminal B- and the
protection board terminal B- should be short and thick, otherwise
it will cause the protection board to charge and discharge in
advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are
too thin and too long will burn the board!
