Technical Parameters
| | Item type | Parameters |

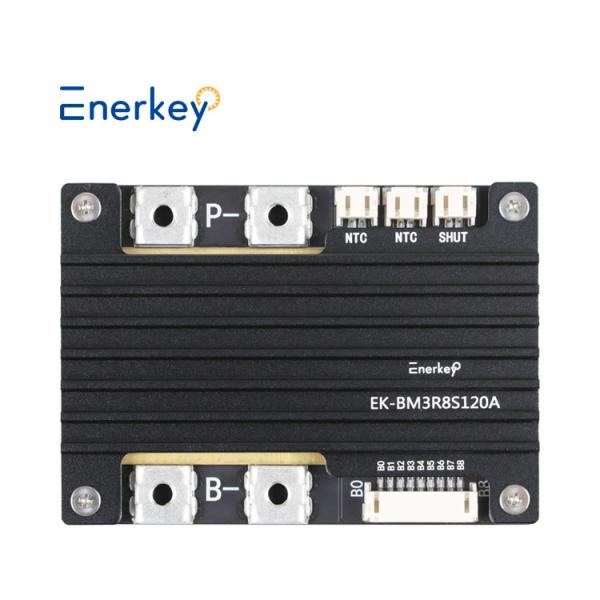

| 1 | Parameter Overview | Product Model | EK-BM3R8S120A |
| Product Size(mm) | L95*W68*T15 |
| Product Weight(kg) | 0.25 |
| Product Material | FR-4 / Lead-free spray tin |
| Applicable battery type | Lifepo4 | Li-ion | Lto | SIB |
| Applicable battery string | 3S-8S | 3S-8S | 3S-8S | 3S-8S |
| Rated discharge current | 120A | 120A | 120A | 120A |
| Peak starting current | 300A | 300A | 300A | 300A |
| | Item type | Trigger
(time) | Trigger
(time) | Trigger
(time) | Trigger
(time) | Trigger
(time) | Trigger
(time) | Trigger
(time) | Trigger
(time) |
| 2 | Charging protection | Overvoltage protection voltage value | 3.65V/1S | 3.50V/1S | 4.25V/1S | 4.05V/1S | 2.85V/1S | 2.75V/1S | 3.95V/1S | 3.80V/1S |
| Balanced phase difference voltage value | Trigger voltage difference 30mV / trigger time 0.5S / balance time
10S cycle |
| Balanced voltage value | 3.45V | 3.70V | 2.50V | 3.10V |
| Overcurrent value | 120A/2S, disconnect charger to recover |
| Low temperature value | Charge over-temperature protection 60℃/2S / Release 55℃/2S |
| Overtemperature value | Charging low temperature protection -5℃/2S / Release 0℃/2S |
| 3 | Discharge protection | Undervoltage protection voltage value | 2.30V/1S | 2.70V/1S | 2.75V/1S | 3.0V/1S | 1.70V/1S | 1.80V/1S | 1.50V/1S | 2.00V/1S |
| ①Overcurrent protection value | 150A/2S, disconnect load or activate charging |
| ②Overcurrent protection value | 250A/0.5S, disconnect load or activate charging |
| Short circuit protection value | 500A/128uS, disconnect load or charge activated |
| Low temperature value | Discharge over-temperature protection 65℃/2S, release 60℃/2S |
| Overtemperature value | Discharge low temperature protection -20℃/2S, release -10℃/2S |
| 4 | Others | Standby current consumption | 25uA |
| Motherboard lock voltage | / |
Size $ Packing List
Package included:
1 * BMS with heatsink
1 * NTC Terminal Cable
1 * Switch Cable
1 * Terminal Cable
6 * Terminal Lugs
6 * M5 Screws
Wire Diagram
Wiring precautions:
1. Installing the protective board requires a certain amount of
technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad
position to the total negative terminal of the battery (the B- wire
should be soldered to a short and thick wire) and solder the wired
terminal to the battery pack first, and then insert the protective
plate.
3. The connection between the battery terminal B- and the
protection board terminal B- should be short and thick, otherwise
it will cause the protection board to charge and discharge in
advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are
too thin and too long will burn the board!
