Core performance
Voltage adaptation: 40.8V–50.4V working voltage, perfect match
for 12S ternary lithium/lithium iron phosphate battery pack
Lossless balancing: 5A bidirectional energy transfer current,
capacitor charge and discharge efficiency ≥92%
Intelligent start and stop: 10mV voltage difference threshold
automatic activation, ≤5mV deep sleep

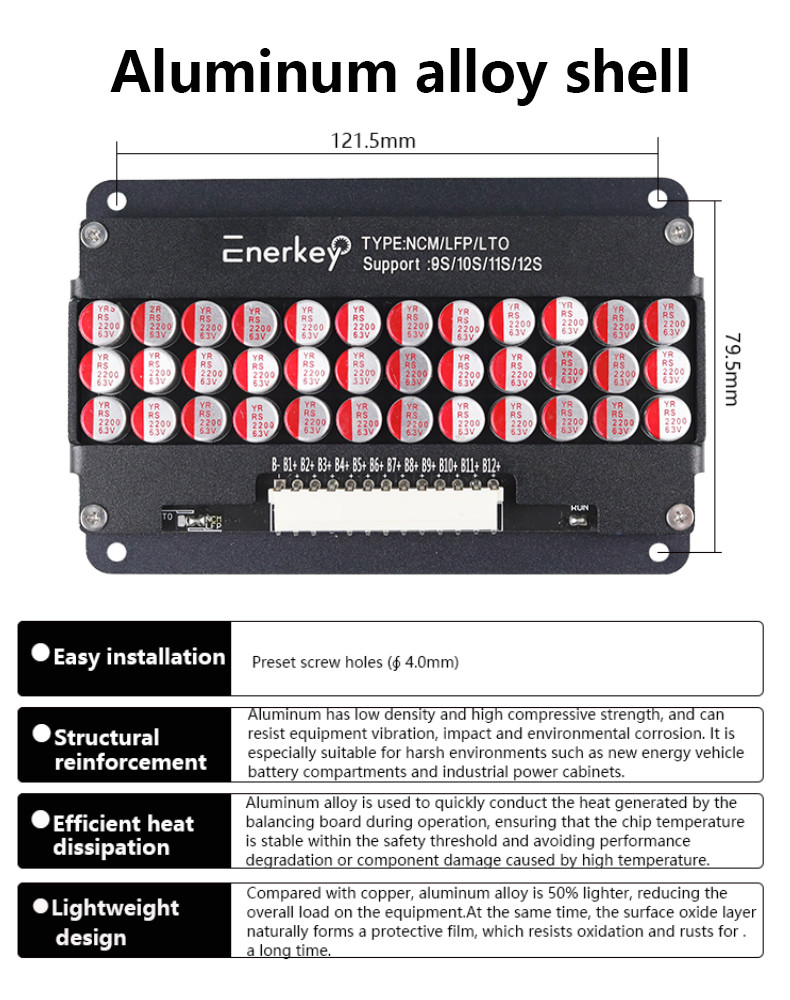

Industrial protection: IP65 aluminum alloy shell, -40℃~125℃ wide
temperature range operation
Capacitor technology innovation
Automotive grade capacitor matrix
Adopt ELNA non-polar electrolytic capacitor, resistant to 125℃ high
temperature and 2000 hours life
Chenyuan CCT high-voltage chip capacitor supports 5KV surge
protection
Three-channel independent control
Synchronous management of 3 groups of battery clusters,
series/parallel topology adaptive
Dual-color LED real-time display of balancing progress and fault
code
Safety protection system
Reverse connection/short circuit/overtemperature triple protection
mechanism
As low as 35mΩ capacitance design to reduce energy loss
Industrial scenario verification
Application field Solution Efficiency improvement
Electric bus Repair battery pack pressure difference Cycle life +
40%
Photovoltaic energy storage station 100kWh+ battery cluster
dynamic balancing Capacity attenuation ↓ 30%
Data center UPS power supply active protection Failure rate ↓ 50%
Technical support
Wiring diagram
1 year warranty + 48 hours emergency response
Technical Parameters
| Fit Capacitive Active Balancer with Aluminum Shell(5A 4S-16S) |
| Product model | EK-C4S5A | EK-C8S5A | EK-C12S5A | EK-C16S5A |
| Battery string | 3/4S | 6/7/8S | 9/10/11/12S | 12/13/14/15/16S |
| Size(mm) | L86.1*W50.1*T19.5 | L96.5*W89.5*T19.5 | L141.5*W89.5*T19.5 | L145.5*W96.5*T19.5 |
| Weight with box | 0.12kg | 0.22kg | 0.32kg | 0.42kg |
| Suitable Battery type | NCM / LFP (Li-ion/Lifepo4) | NCM / LFP/LTO (Li-ion/Lifepo4/Lto) |
| Suitable Battery capacity | 30AH-300AH |
| Base material/Surface treatment | FR-4/HASL |
| Single cell voltage operating range | Li-ion/Lifepo4:2.7-4.2V LTO:1.8-4.2V |
| Undervoltage protection sleep voltage | Li-ion/Lifepo4:<2.7V LTO:<1.8V |
| Equilibrium method | Patented (patent number: ZL 2019 1 1259513.3) balancing
architecture Fit capacitor method, the entire battery pack is
balanced at the same time. |
| Equilibrium current | 0.1V voltage difference is 1A balancing current, voltage difference
is proportional to balancing current,
maximum allowable operating current is 5.5A |
| Whether need an external power supply | No external power supply is required, relying on the internal
energy transfer of the battery to achieve balance of the entire
group |
| Voltage equalization accuracy | 5mV(Typical value) |
| Quiescent current | 0.1mV(Typical value) |
| LED indicator | 1. LED steady on, balanced working 2. LED off, undervoltage sleep |
| Balance cascading | Support balanced cascading for battery packs, for example, It can
cascade for 11S, 24S, 36S, 48S.....and so on. |
| Accessories | 18awg Therminal wire 40cm |
| Work temperture | -10℃ - +60℃ |
| Feature | 24H Non-stop overall balancing, supports cascading, undervoltage
protection, ultra-low loss, etc. |
| Application | Outdoor energy storage, home energy storage, industrial and
commercial energy storage, RV modification, low-speed vehicles,
solar photovoltaic, etc., temporarily used for battery balancing
maintenance, repair, etc. |
