Disruptive performance: 5A patented balancing technology
High-efficiency energy transfer: Adopting energy transfer active
balancing solution, single output 5A high current, accurately
repairing battery cell voltage difference (accuracy ±5mV),
significantly extending battery life, and avoiding energy waste of
traditional resistance balancing.
Full battery cell compatibility: Supports 16-series battery packs
such as ternary lithium/lithium iron phosphate/lithium titanate,
covering harsh scenarios such as energy storage and electric
vehicles, and the voltage range is adapted to 12~16 series flexible
configuration.
Multiple protection and intelligent control
Industrial-grade safety protection: Integrated overcharge,
over-discharge, overcurrent, short circuit and temperature
protection, automatic activation of heating function at low
temperature, ensuring stable operation in extreme environments of
-20℃~65℃.
Silent low temperature rise design: Energy consumption during
balancing is reduced by 40%, heat generation is reduced by 50%, and
fanless operation is adapted to closed spaces such as RVs/energy
storage cabinets.
Core parameter list
Item Specifications
Balanced current Continuous 5A
Voltage accuracy ±5mV (full cycle active calibration)
Applicable scenarios Energy storage power station/electric
forklift/RV power supply/low-speed four-wheel vehicle
Technical Parameters

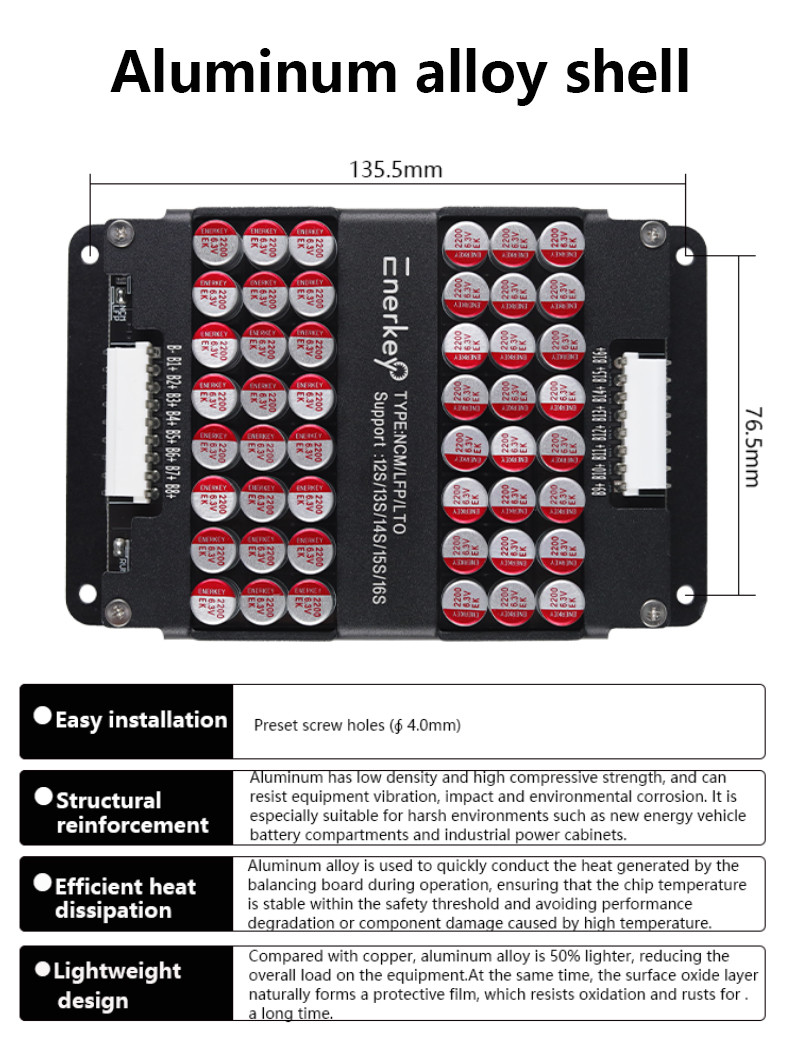

| Fit Capacitive Active Balancer with Aluminum Shell(5A 4S-16S) |
| Product model | EK-C4S5A | EK-C8S5A | EK-C12S5A | EK-C16S5A |
| Battery string | 3/4S | 6/7/8S | 9/10/11/12S | 12/13/14/15/16S |
| Size(mm) | L86.1*W50.1*T19.5 | L96.5*W89.5*T19.5 | L141.5*W89.5*T19.5 | L145.5*W96.5*T19.5 |
| Weight with box | 0.12kg | 0.22kg | 0.32kg | 0.42kg |
| Suitable Battery type | NCM / LFP (Li-ion/Lifepo4) | NCM / LFP/LTO (Li-ion/Lifepo4/Lto) |
| Suitable Battery capacity | 30AH-300AH |
| Base material/Surface treatment | FR-4/HASL |
| Single cell voltage operating range | Li-ion/Lifepo4:2.7-4.2V LTO:1.8-4.2V |
| Undervoltage protection sleep voltage | Li-ion/Lifepo4:<2.7V LTO:<1.8V |
| Equilibrium method | Patented (patent number: ZL 2019 1 1259513.3) balancing
architecture Fit capacitor method, the entire battery pack is
balanced at the same time. |
| Equilibrium current | 0.1V voltage difference is 1A balancing current, voltage difference
is proportional to balancing current,
maximum allowable operating current is 5.5A |
| Whether need an external power supply | No external power supply is required, relying on the internal
energy transfer of the battery to achieve balance of the entire
group |
| Voltage equalization accuracy | 5mV(Typical value) |
| Quiescent current | 0.1mV(Typical value) |
| LED indicator | 1. LED steady on, balanced working 2. LED off, undervoltage sleep |
| Balance cascading | Support balanced cascading for battery packs, for example, It can
cascade for 11S, 24S, 36S, 48S.....and so on. |
| Accessories | 18awg Therminal wire 40cm |
| Work temperture | -10℃ - +60℃ |
| Feature | 24H Non-stop overall balancing, supports cascading, undervoltage
protection, ultra-low loss, etc. |
| Application | Outdoor energy storage, home energy storage, industrial and
commercial energy storage, RV modification, low-speed vehicles,
solar photovoltaic, etc., temporarily used for battery balancing
maintenance, repair, etc. |
Packing List

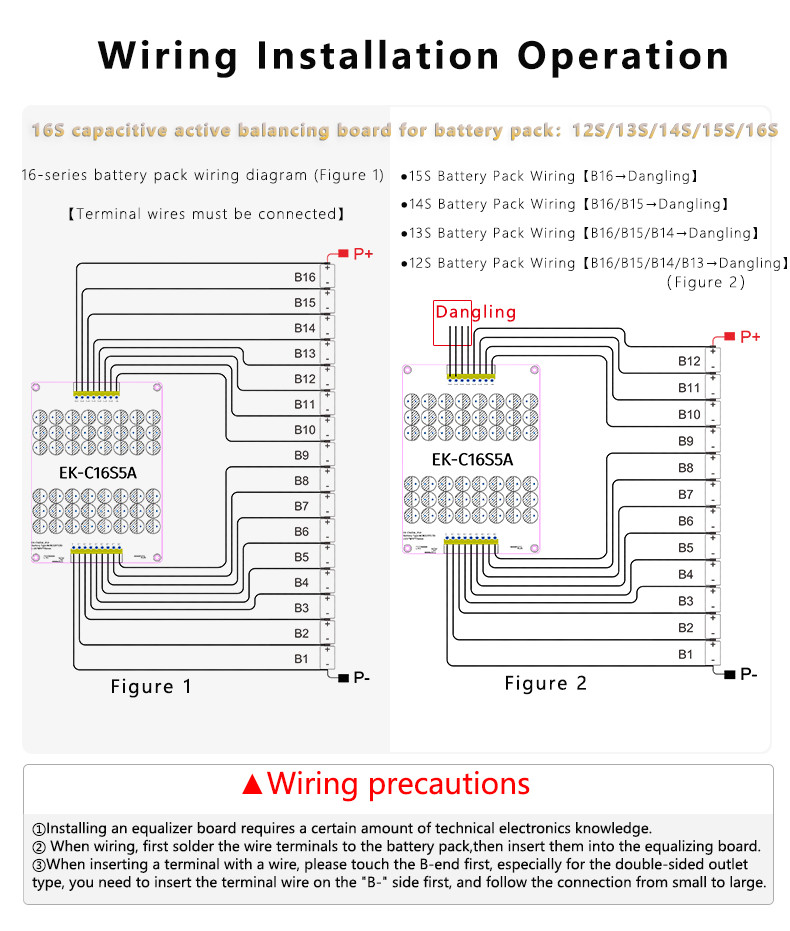

Wire connect
FAQ
Q1. Why did we choose you?
* We can provide you with efficient after-sales service, with more
than 10 years of strong technical support.
* Products have passed FCC, CE, ROHS and other international
standards certification.
* We can provide you with factory price, Welcome you to visit our
factory and production process.
Q2. What is your product range (type)?
*We mainly do battery management systems in the fields of power
batteries, energy storage batteries and consumer batteries.
*Mainly used for LFP, Li-ino and LTO batteries.
Q3: How do I know which kind of material & type my battery is ?
*Please look the battery body, If the normal voltage of your
battery shows 3.2V, The battery is LiFePo4.
*If the normal voltage of your battery shows 3.6V or 3.7V, the
battery is Li-ion or Lto battery.
Q4. Do you have minimum order requirements?
Can it be customized? What is the lead time for samples and
batches?
*Our minimum order quantity is 1 piece, ODM customization is
available.
* 1~3 days delivery of existing samples, 3~10 days delivery of
customized samples.
Q5: What if i can't use it?
*Regular products have instructional videos, We can also support
online video call guidance from engineers.
Q6. What are your terms of payment?
*We accept wire transfer and cash payment, all negotiable. Payment
method :visa, mastercard, T/T, PayPal, APPLE_PAY, GOOGLE_PAY,
GC_REAL_TIME_BANK_TRANSFER, RMB
Q7. How do you guarantee the quality?
* All our products are subjected to professional laboratory 100%
testing, as well as repeated aging tests.
* Obtained FCC, CE, ROHS and other international standard
certification.
* Provide 3 years after-sales warranty service. Free spare units
for replace in 3 years.
Q8. How to choose a BMS suitable for our battery?
*Depending on the voltage and current that matches your battery,
you can consult our customer service and we will provide it for you
equipped with the most suitable battery management system.
Q9. How can i contact you?
*We have 7x24 hours online service, Please leave us a message
online.
*You can also contact us by Email, WhatsApp, WeChat, etc(see
below). We are so glad to work with you.
Noted: We are source manufacturer, We have own brand for "EnerKey",We can customized product as your requirement(Voltage, Wire,Etc) .
We can provide you competitive price in the market if you have bulk
order, Please don't hesitate to contact us.
