8S 5A Pro upgraded version of capacitive active balancing board
Core performance
Lossless balancing technology: Use high-frequency capacitor
charging and discharging (15kHz) to transfer energy to avoid
resistance heating loss, and the measured static power consumption
is only 0.11W
Current and compatibility: 5A continuous balancing current,
support ternary lithium/lithium iron phosphate/lithium titanate
battery pack (15.6V-29.6V)
Intelligent start-stop: 5mV level pressure difference detection
accuracy, automatic start when pressure difference>10mV,
automatic sleep after balancing

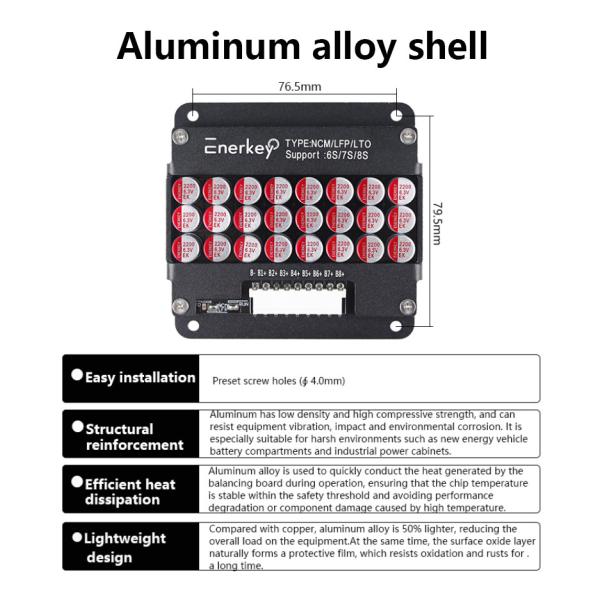

Industrial grade protection: Aluminum alloy shell with integrated
heat sink, protection level IP65, suitable for -20℃ to 85℃
environment
Project measured data
Test item Parameter
Capacitive reactance optimization 40-50mΩ (2200μF capacitor)
Capacitor expansion Support 6300μF large-capacity capacitor
Balance efficiency ≥90% (energy transfer rate)
Installation compatibility Adapt to 18AWG high-temperature wiring
harness
Scenario adaptation
Battery pack repair workshop: Quickly repair the voltage
difference problem of electric vehicle (such as BAIC EC series)
battery cells
Energy storage system maintenance: Balance the solar energy
storage cabinet battery pack to extend the life by 30%+
Industrial equipment matching: Active safety protection of UPS
power supply/communication base station battery
Service guarantee
Accessory list: Balance board body × 1, aluminum alloy shell,
18AWG silicone wire
Technical support: Provide circuit diagram and installation guide
(including welding precautions)
Warranty policy: 1-year limited warranty, 72-hour fault response
Technical Parameters
| Fit Capacitive Active Balancer with Aluminum Shell(5A 4S-16S) |
| Product model | EK-C4S5A | EK-C8S5A | EK-C12S5A | EK-C16S5A |
| Battery string | 3/4S | 6/7/8S | 9/10/11/12S | 12/13/14/15/16S |
| Size(mm) | L86.1*W50.1*T19.5 | L96.5*W89.5*T19.5 | L141.5*W89.5*T19.5 | L145.5*W96.5*T19.5 |
| Weight with box | 0.12kg | 0.22kg | 0.32kg | 0.42kg |
| Suitable Battery type | NCM / LFP (Li-ion/Lifepo4) | NCM / LFP/LTO (Li-ion/Lifepo4/Lto) |
| Suitable Battery capacity | 30AH-300AH |
| Base material/Surface treatment | FR-4/HASL |
| Single cell voltage operating range | Li-ion/Lifepo4:2.7-4.2V LTO:1.8-4.2V |
| Undervoltage protection sleep voltage | Li-ion/Lifepo4:<2.7V LTO:<1.8V |

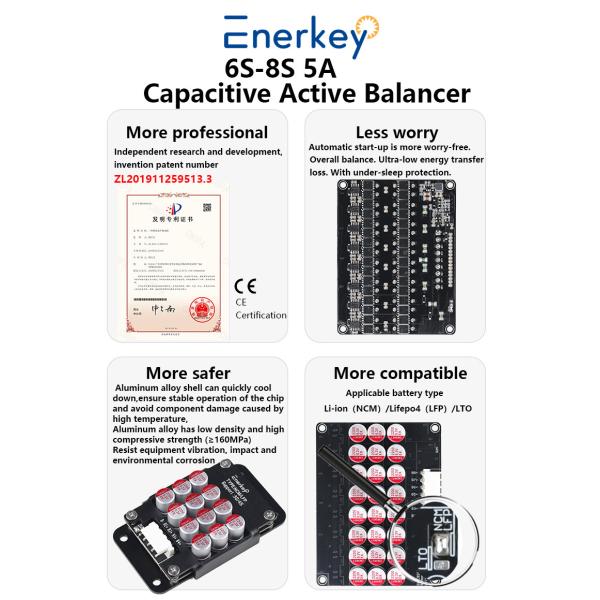

| Equilibrium method | Patented (patent number: ZL 2019 1 1259513.3) balancing
architecture Fit capacitor method, the entire battery pack is
balanced at the same time. |
| Equilibrium current | 0.1V voltage difference is 1A balancing current, voltage difference
is proportional to balancing current,
maximum allowable operating current is 5.5A |
| Whether need an external power supply | No external power supply is required, relying on the internal
energy transfer of the battery to achieve balance of the entire
group |
| Voltage equalization accuracy | 5mV(Typical value) |
| Quiescent current | 0.1mV(Typical value) |
| LED indicator | 1. LED steady on, balanced working 2. LED off, undervoltage sleep |
| Balance cascading | Support balanced cascading for battery packs, for example, It can
cascade for 11S, 24S, 36S, 48S.....and so on. |
| Accessories | 18awg Therminal wire 40cm |
| Work temperture | -10℃ - +60℃ |
| Feature | 24H Non-stop overall balancing, supports cascading, undervoltage
protection, ultra-low loss, etc. |
| Application | Outdoor energy storage, home energy storage, industrial and
commercial energy storage, RV modification, low-speed vehicles,
solar photovoltaic, etc., temporarily used for battery balancing
maintenance, repair, etc. |
