BMS module for protection against short-circuit, overcharge,
over-discharge and voltage equalization function of individual
cells.
The system is supplied ready to work with standard parameters,
corresponding to cells available on the market.
Resistant to dust, vibration, impact-ideal for demanding
applications.
It comes complete with a cable for connecting individual cells and
a built-in NTC temperature probe.
Before installing the system, please read the attached
instructions.
Technical Parameters

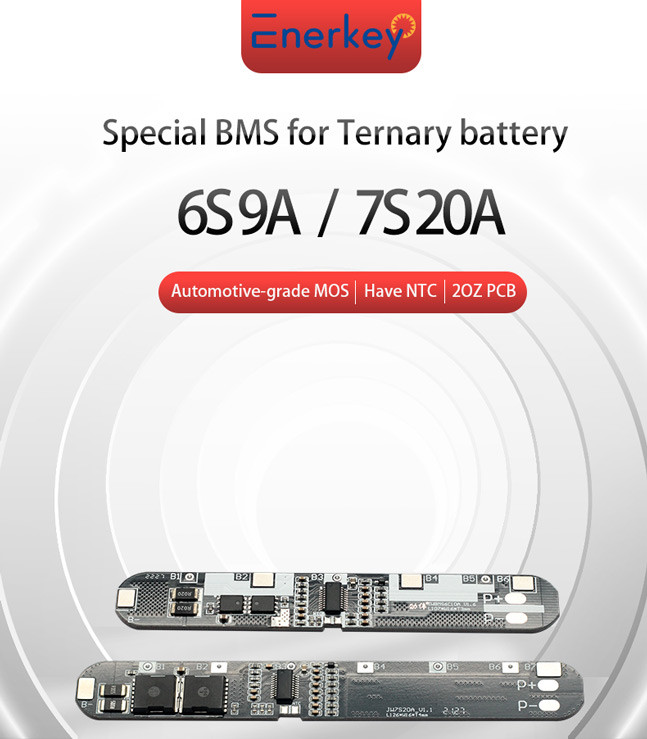

Enerkey Lithium Battery Protection Board (BMS) 6S 10A 7S 20A 22.2V 24V 36V For Photovoltaic Solar Panels and Industrial Power & Home Energy
Storage System and Electric Car and Scooter and Motorcycle |
| Product model | EK-B6S10A | EK-B7S20A |
Suitable battery strings | | |
| Product size(mm) | L107xW16xT3 | L126xW16xT4 |
| Weight with box | 0.02kg | 0.022kg |
| Rated discharge current | Typ 10A | Typ 20A |
| Peak starting current | TYP 18A | TYP 40A |
| Over current protection current | TYP 10A | TYP 40A |
| Specical function | NTC(option) |
| Suitable battery type | Lithium(NCM) |
| Rated working voltage B+B- | Max 30V |
P+P- input withstand voltage | Max 40V |
Charging overcurrent protection value | Not limited |
| Charge detection voltage | Min 4.2V / Typ 4.225V / Max 4.25V |
Charge detection delay time | Min 0.5S / Typ 1S / Max 1.3S |
Overcharge release voltage | Min 4.0V / Typ 4.005V / Max 4.05V |
Discharge detection voltage | Min 2.65V / Typ 2.7V / Max 2.75V |
| Discharge detection delay time | Min 20ms / Typ 100ms / Max 150ms |
| Discharge release voltage | Min 2.8V / Typ 2.95V / Max 3.05V |
Conditions for lifting protection | Disconnect external load or charge self-recovery |
| Overcurrent detection voltage | Typ 0.1V |
| Overcurrent protection time | Min 0.7S / Typ 1S / Max 1.3S |
| Conditions for lifting protection | Disconnect external load or charge self-recovery |
| Short circuit protection current | Typ 40A |
| Detection delay time | Min 150μS / Typ 250μS / Max 400μS |
| Conditions for lifting protection | Disconnect external load or charge self-recovery |
| Main circuit on-state resistance | Typ 5mΩ |
| Normal working current consumption | Typ 10μA / Max 15μA |
| Current consumption during sleep | Max 2.5μA |
Operating Temperature | |

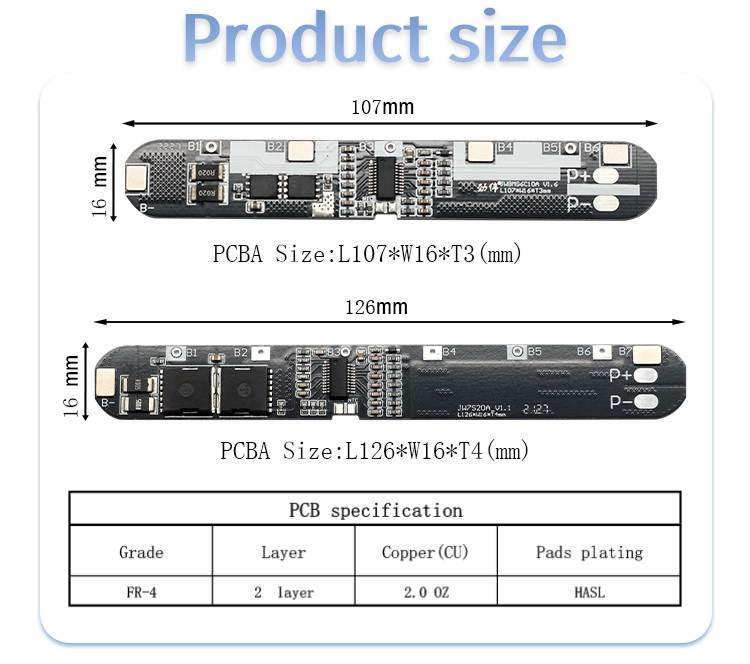

Size $ Packing List

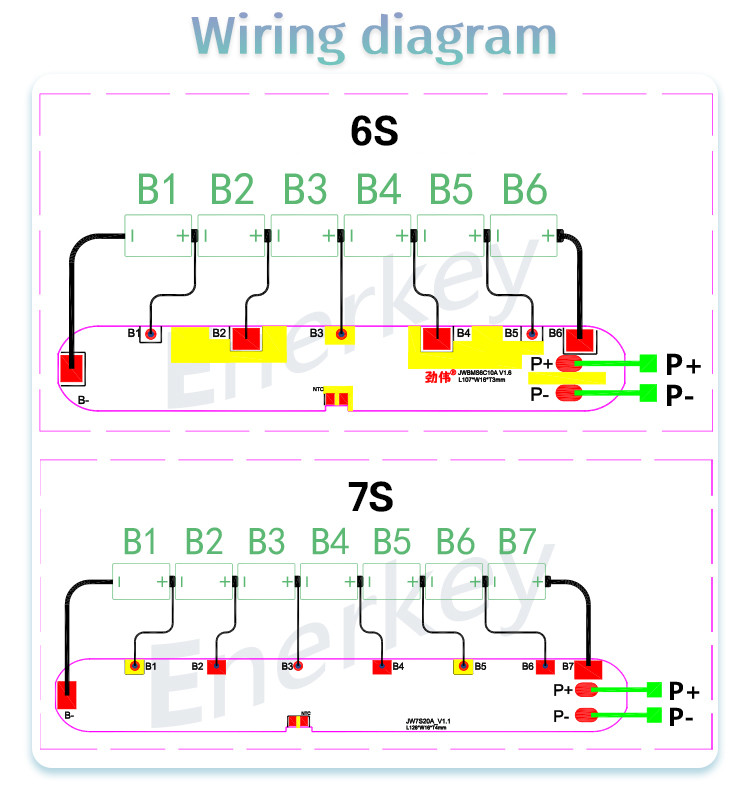

Wire Diagram
Wiring precautions:
1. Installing the protective board requires a certain amount of
technical electronic knowledge.
2. When wiring, first connect the B- wire at the soldering pad
position to the total negative terminal of the battery (the B- wire
should be soldered to a short and thick wire) and solder the wired
terminal to the battery pack first, and then insert the protective
plate.
3. The connection between the battery terminal B- and the
protection board terminal B- should be short and thick, otherwise
it will cause the protection board to charge and discharge in
advance and malfunction.
4. You need to use thick wires when wiring P+/P-. Wires that are
too thin and too long will burn the board!
