Product model: EK-16S2EB
Unit quantity (S) :2S～16S
Cascading: Support
Product size:L123 x W94 x T20(mm)
Weight (package concluded): 220g
Supported battery type: NCM / LFP
Single cell voltage collection range :1.5V～4.5V
Product use manual
1.Download app and manual, Please contact us to send you
2.Wire connection as our wire diagram
3.Startup
4. Open the app and connect the device
5.Set the number of strings and battery type and capacity and stop
voltage and run voltage and start balance current.
6.Check the battery status
①.Scan the following QR codes to download app, instructions and
videos.
②.Connect the protection board and battery pack according to the
following wiring diagram, Make sure that the last power cord is
also connected to the main positive pole, The total voltage of the
battery pack must be greater than 25V before starting up
③.Make sure your mobile Bluetooth is turned on, then turn on APP
click on the top left corner of APP to search for devices, and
click on the device name to connect to the default password: 12345
Technical Parameters

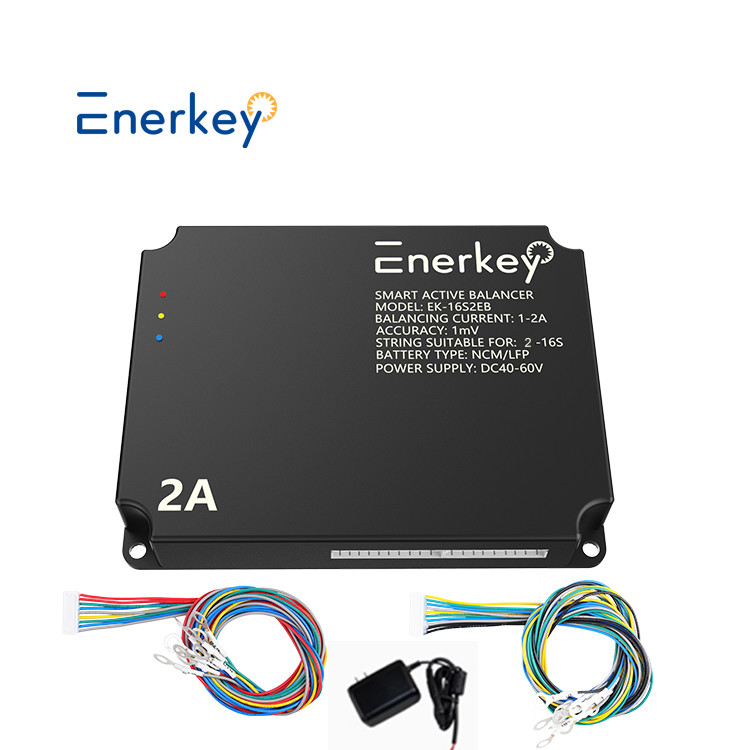

| Product model | 16S 2A Smart Active Balancer for 2-16s (EK-16S2EB) |
| Supported battery type | NCM / LFP(Li-ion/Lifepo4) |
| Single cell voltage collection range | |
| Undervoltage protects sleep voltage | APP can be customized Settings :1.5-4.2V |
| Equilibrium method | Time-sharing single channel transfer, point-to-point energy
transfer |
| Reverse protection | Support disorderly power on detection/protection |
| Equilibrium current | APP can be customized Settings: 1A~2A |
| Whether an external power supply is required | When the total battery system voltage is below 24V,
An external booster module or an external power supply is required. |
| Voltage equalization accuracy | APP can be customized Settings :1mV(TYP) |
| Wire cascading | |
| Power failure detection function | |
| Wrong wire protection function | |
| Fault alarm function | |
| Buzzer | APP can be customized Settings |
| Power dissipation | At equilibrium≈1W,Stop equilibrium≈0.5W |
| Operating temperature | |
Application
| Electric toys, electric balance car/bicycle |
Packing List
Use Manual
Wiring Diagram
EK-16S2EB supports cascading use, and at least one battery between
every two equalizers is the "common end of energy exchange". The
following uses the 32S as an example to describe how to install and
connect cables:
Notice:
1.When used in cascade, there is at least one "energy exchange
commonend" between every two equalizers. When welding, please note
whetherthe connection here is correct.
2.During cascading use, please check whether the wiring is
wrongrepeatedly.lf it cannot be used after connection, please
contactafter-sales personnel to consult the corresponding cascade
diagram.
