Product Description:
The Intelligent Charge and Discharge Equalizer (EK-FD14AS24CK) is a
key component for 2~24S battery packs, which can be used for
NCM/LFP/LTO batteries with voltage ranging from 2V to 4.5V. This
device is designed to balance the voltage of each battery in the
pack and ensure their safety and longevity. The actual current of
the device varies depending on input voltage, line resistance,
temperature, and battery performance.
The Charge and Discharge Equalizer also supports automatic
identification of the number of battery series, and has various
safety features such as reverse connection protection,
over-temperature protection, over-voltage (4.5V) protection,
low-voltage (2V) protection, and alarm. Once the balancing process
is completed, the equalizer automatically stops and alarms.
There are three different modes: discharge balance, constant
voltage balance, and charge balance. However, an external charger
with an adjustable non-auto-stop function is required for charging.
The Equalizer uses two modes: automatic identification mode and
manual input mode. In automatic identification mode, the lowest
voltage string is used as the base, and the voltage of all strings
is balanced to the lowest voltage string (voltage is aligned
downward). Manual input mode allows users to set the required
balanced voltage value, and the device balances all strings to this
set voltage value.
This Intelligent Charge and Discharge Equalizer also comes with a
7-inch display that shows important information such as balanced
voltage, balanced current, voltage per string, total voltage,
maximum voltage, minimum voltage, average voltage, maximum voltage
difference, number of battery strings, and temperature.
Technical Parameters:
Voltage Measure Range: The range for voltage measurement is from 1V to 4.5V.
Voltage Measure Accuracy: The accuracy for voltage measurement is ±(0.08%+0.06%FS).
Current Setting Range: The range for current setting is from 0.1A to 14A, and it can be
adjusted.
Discharge Balance Method: The method used for discharge balance is PWM pulse discharge
method.
Charging Assistance: In order to charge, an external charger is required. The charging
port is able to withstand a voltage of ±DC130V.
Equilibrium Voltage: The equilibrium voltage is automatically identified.
Interface Withstand Voltage: The interface is able to withstand a voltage of B- to B24 without
voltage, ranging from -120V to +120V.
Power Supply: The power supply required is DC12V5A.
| Product name | 24S 14A Intelligent Charge and Discharge Equalizer |
| Product model | EK-FD14AS24CK |
| Product size | L360*W340*H195mm |
| Product weight | 8.6kg |
| Suitable battery type | NCM / LFP/Lto(Li-ion/Lifepo4/Lto) |
| Suitable battery strings | 2s-24s |
| Suitable battery voltage range | 2.0V-4.5V |
| Equilibrium current | 0.1A-14A(Can be adjust) |
| Equilibrium principle | PWM pulse discharge method |
| LCD Display size | 7inch |
| Equilibrium mode | Discharge balance, constant voltage balance, charge balance
(needs an external charger with adjustable non-auto-stop function) |
| Equilibrium voltage | Automatic Identification |
| Charging assistance | Need to use an external charger, the charging port withstands
voltage ±DC130V |
| Single channel interface withstand voltage | -120V~ +120V |
| Chinese-English display conversion | After turning on the device, press and hold the balance button for
10 seconds to switch between Chinese and English |
| Actual current | The actual current is related to input voltage, wire resistance,
temperature, and battery performance. |
| Voltage measurement range | 1V~4.5V |
| Voltage measurement accuracy | ±(0.08%+0.06%FS) |
| External power supply | DC12V 5A |
| Interface pressure resistance | -120V~ +120V |
| Automatically identify strings | Support |
| Power failure detection function | Support |
| Wrong wire protection function | Support |
| Fault alarm function | Support |
| Operating temperature | 0℃ ~ 40℃ |
| Operating humidity | 20%~70%RH |
| Application | Lithium battery PACK factory / electric vehicle repair shop /
personal lithium battery DIY helper |
| Balanced voltage mode | There are two modes: automatic identification mode and manual input
mode. The automatic identification mode is based
on the lowest voltage string, and all are balanced to the voltage
of the lowest voltage string (voltage is aligned
downward). The manual input mode is to set the required balanced
voltage, and all are balanced to the set voltage value. |
| Optimum charger voltage | Optimal charger voltage (V) = (balance voltage (V) * number of
strings) + (number of strings * 0.01V); Charger current
is less than or equal to the balance current. Charging current is
less than or equal to 10A. Exceeding 12A will damage
the device. When charging balance, please disconnect the charger
immediately after balance is completed. |
| Display content | Balanced voltage, balanced current, voltage per string, total
voltage, maximum voltage, minimum voltage,
average voltage, maximum voltage difference, number of battery
strings, temperature |
| Operation Instructions | After power on, the default mode is automatic identification. After
connecting the wire, press the
"Start" button or the "Equilibrium" button on the chassis to
automatically identify and start balancing.
Manual input mode, press "Manual input" to enter manual input
mode,Then press "Equilibrium
Voltage (V)" to open the numeric keypad and enter the balance
voltage (2.0v-4.5v) to confirm,
then press the "Start" button or the "Equilibrium"button on the
chassis to start balancing.
Press "Maximum Balance Current (A)" to enter the current setting,
the range is 0A-14A. |
Applications:
Lithium battery PACK factory / electric vehicle repair shop /
personal lithium battery DIY helper / Electronic cars
/ Power storage system / Electronic tools etc.

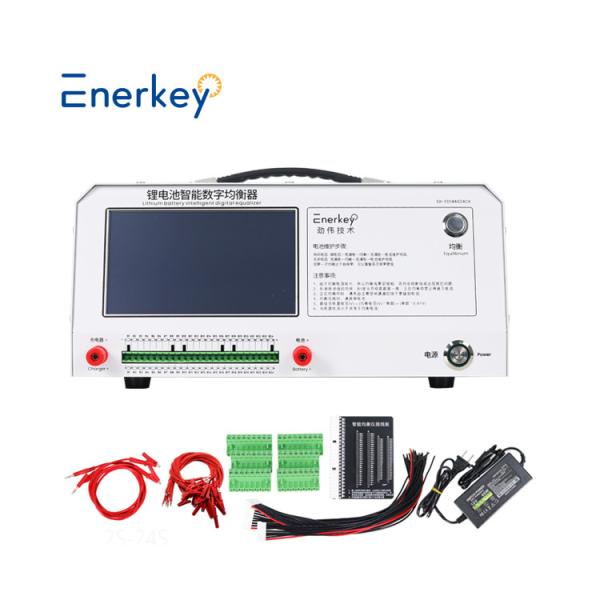

Packing and Shipping:
Intelligent Equalizer x1pcs
Wire Clip Cables x 1set
Wire Thermial x 1set
Power Cables x 1set
Adapter x 1pcs
Power Supply x 1pcs
Product Manual x1pcs
