The intelligent active balancing energy storage chip uses
supercapacitor energy storage, which has higher balancing power,
lower heat generation, greatly shortened balancing time, and the
balancing current is not limited by the package heat dissipation.
When the voltage difference of each battery reaches a certain
value, the chip will immediately start the balancing process to
transfer the energy of the battery with higher voltage to the
battery with lower voltage, thereby maintaining the voltage balance
of the entire battery pack. In standby mode, the chip consumes only
very low standby current and has a balancing voltage accuracy of up
to 1mV.
Improve the efficiency of battery packs: By ensuring that the
charging state of all battery cells in the battery pack is
consistent, it is possible to avoid damage to some batteries due to
overcharging or overdischarging, thereby improving the efficiency
of the entire battery pack.
Extend the service life of the battery pack: The life of the
battery is closely related to the number of its charge and
discharge cycles. Balancing technology can reduce the imbalance
between battery cells and reduce the overcharge and discharge of a
single battery cell, thereby extending the service life of the
entire battery pack.
Technical Parameters

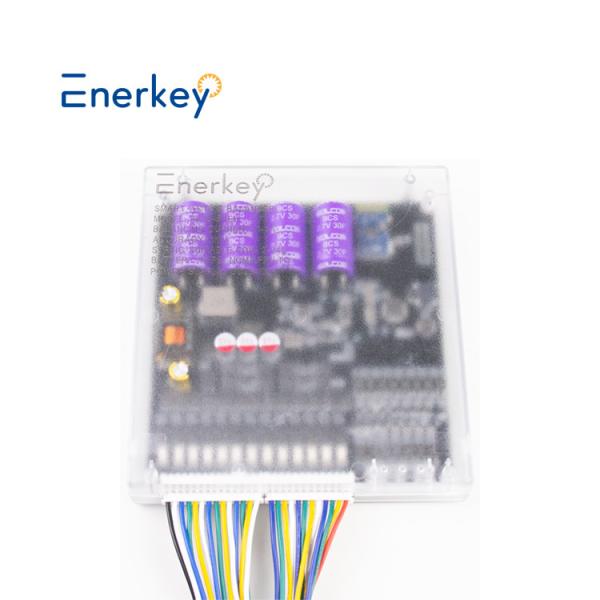

| Product model | 4A Smart Active Balancer for 2-24s (EK-24S4EB) |
| Supported battery type | NCM / LFP/ LTO(Li-ion/Lifepo4/Lto) |
| Single cell voltage collection range | |
| Undervoltage protects sleep voltage | APP can be customized Settings :1.5-4.2V |
| Equilibrium method | Time-sharing single channel transfer, point-to-point energy
transfer |
| Reverse protection | Support disorderly power on detection/protection |
| Equilibrium current | APP can be customized Settings: 1A~4A |
| Whether an external power supply is required | When the total battery system voltage is below 25V,
An external booster module or an external power supply is required. |
| Voltage equalization accuracy | APP can be customized Settings :1mV(TYP) |
| Wire cascading | |
| Power failure detection function | |
| Wrong wire protection function | |
| Fault alarm function | |
| Buzzer | APP can be customized Settings |
| Power dissipation | At equilibrium≈1W,Stop equilibrium≈0.5W |
| Operating temperature | |
Application
| Electric toys, electric balance car/bicycle |
Packing List
Use Manual
Wiring Diagram
When used for battery packs with less than 24 string cells in
series, the empty pin is suspended.
When used for battery packs with a total voltage of less than 25V,
an external DC power supply is required
EK-24S4EB supports cascading use, and at least one battery between
every two equalizers is the "common end of energy exchange". The
following uses the 32S as an example to describe how to install and
connect cables:
Notice:
1.When used in cascade, there is at least one "energy exchange
commonend" between every two equalizers. When welding, please note
whetherthe connection here is correct.
2.During cascading use, please check whether the wiring is
wrongrepeatedly.lf it cannot be used after connection, please
contactafter-sales personnel to consult the corresponding cascade
diagram.
