Features:
Applicable string number: 2S-24S
Cascading: Support Cascading
Boundary dimensions: L156 x W144 x T28 (mm)
Weight (excluding packaging) :960g
Reverse protection: supports disorderly power on
detection/protection
External power supply: DC 12-120V
Support battery type: ternary lithium battery (NCM)/lithium iron
phosphate battery (LFP)/lithium titanate battery (LTO)
Working range of individual voltage: 1.5V~4.5V
Under voltage protection sleep voltage can be customized by APP:
1.5-4.2V
The equilibrium method involves time-sharing, single channel
transfer, and point-to-point energy transfer.
Equalizing current can be customized by APP: 1A~10A
Voltage balancing accuracy can be customized by APP: 1mV (typical
value)
Do you need an external power supply that can be powered by a
battery (with an accuracy of 3mV) and an external power supply
(with an accuracy of 1mV)
Power failure detection function: supports power failure detection
Wrong wire protection function: supports wrong wire protection
function
The fault alarm function: supports the fault alarm function
Buzzer can be customized through APP settings
Power consumption ≈ 1W when the equalization system is turned on, ≈
0.5W when the equalization system is turned off
Working environment temperature -20 ° to+45 °
Technical Parameters

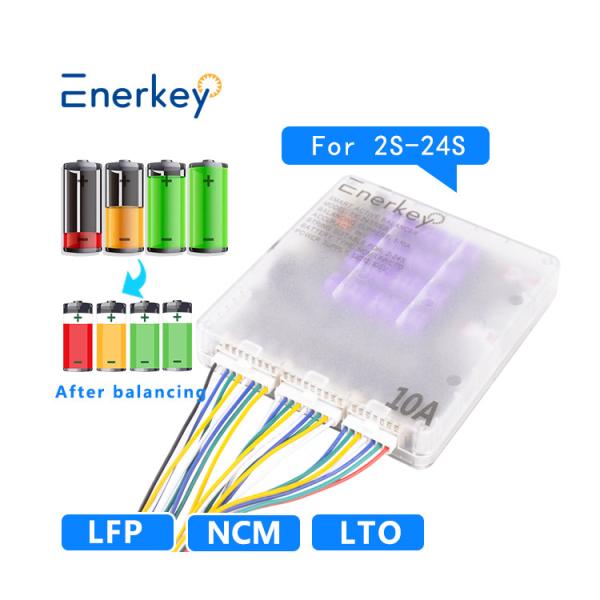

| Product model | 10A Smart Active Balancer for 2-24s (EK-24S10EB) |
| Supported battery type | NCM / LFP/ LTO(Li-ion/Lifepo4/Lto) |
| Single cell voltage collection range | |
| Undervoltage protects sleep voltage | APP can be customized Settings :1.5-4.2V |
| Equilibrium method | Time-sharing single channel transfer, point-to-point energy
transfer |
| Reverse protection | Support disorderly power on detection/protection |
| Equilibrium current | APP can be customized Settings: 1A~10A |
| Whether an external power supply is required | External power supply 24V-100V(accuracy ±1mV) Battery powered (accuracy ±3mV) |
| Voltage equalization accuracy | APP can be customized Settings :1mV(TYP) |
| Wire cascading | |
| Power failure detection function | |
| Wrong wire protection function | |
| Fault alarm function | |
| Buzzer | APP can be customized Settings |
| Power dissipation | At equilibrium≈1W,Stop equilibrium≈0.5W |
| Operating temperature | |
Application
| Electric toys, electric balance car/bicycle |
Packing List
Use Manual
Wiring Diagram
The use of battery power or DC adapter power supply, its wiring
method is the same, only the following two differences:
1 Battery power supply support 4S-24S, voltage balancing accuracy
±3mV;
2 DC adapter power supply support 2S-24S, voltage balancing
accuracy ±1mV. The following figure shows how to install and
connect the 24S battery pack:
EK-24S10EB supports cascading use, and at least one battery between
every two equalizers is the "common end of energy exchange". The
following uses the 36S as an example to describe how to install and
connect cables:
Notice:
1.When used in cascade, there is at least one "energy exchange
commonend" between every two equalizers. When welding, please note
whetherthe connection here is correct.
2.During cascading use, please check whether the wiring is
wrongrepeatedly.lf it cannot be used after connection, please
contactafter-sales personnel to consult the corresponding cascade
diagram.
